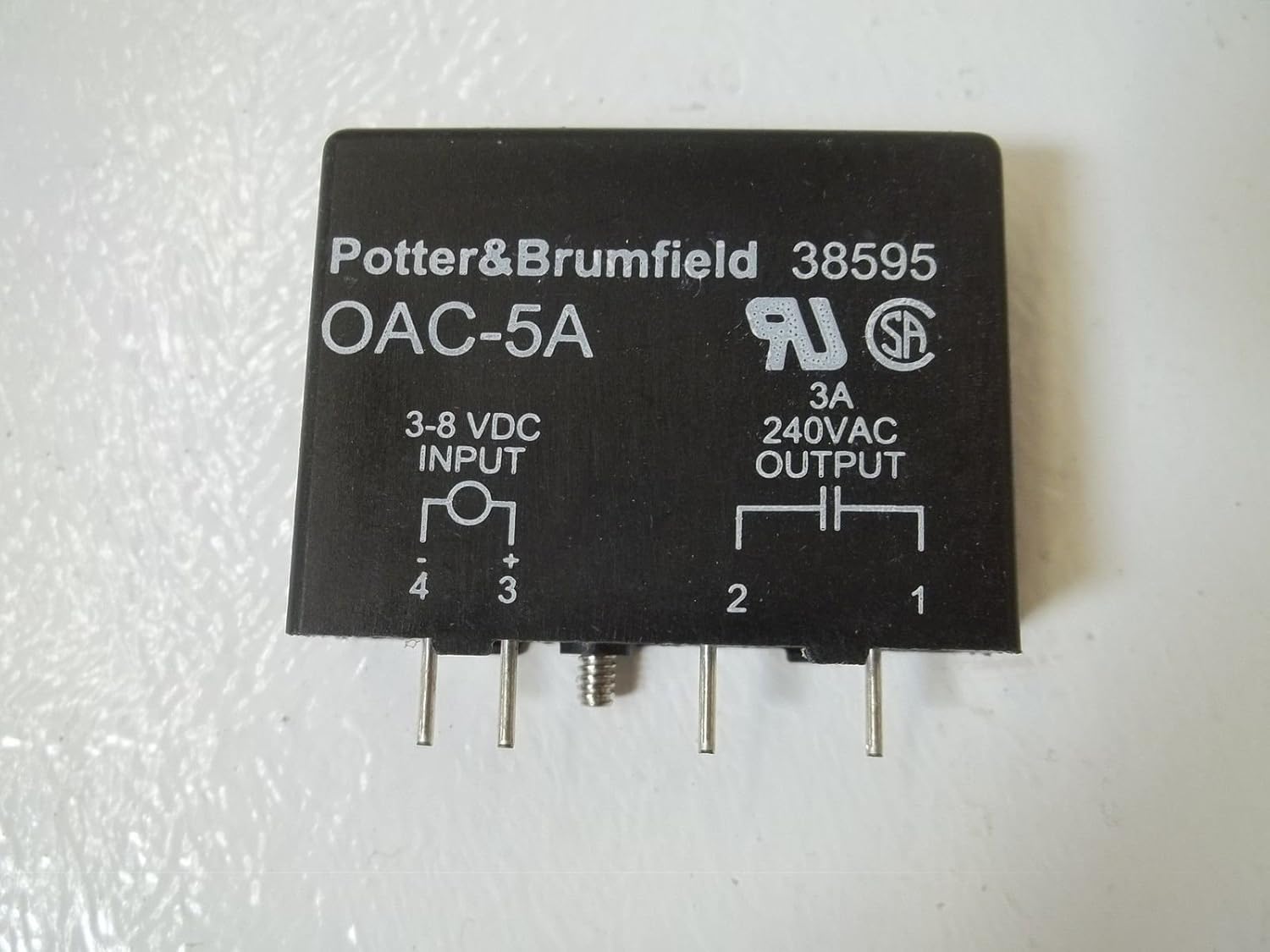

Te Connectivity OAC-5A Output Module OAC-5A

Product Description

The TE CONNECTIVITY OAC-5A Output Module OAC-5A is a DC input solid state relay with 1 Form A SPST-NO contact arrangement. It features an input voltage of 3 – 8 VDC and an output voltage of 24 – 280 Vrms with AC output. Designed for board mounting, this module is suitable for various industrial automation applications.

• DC Input Solid State Relay
• 1 Form A SPST-NO
• 3 – 8 VDC Input
• 24 – 280 Vrms Output
• AC Output
• Board Mount

Product Highlights

Solid state relay with 3 – 8 VDC input and 24 – 280 Vrms AC output, ideal for industrial automation.

Product Information

Standard Information

• Brand: TE CONNECTIVITY
• Manufacturer Part Number: OAC-5A

Technical Specifications

• Manufacturer: TE CONNECTIVITY
• Item Model Number: OAC-5A
• MPN: OAC-5A
• Contact Arrangement: 1 Form A SPST-NO
• Input Current Type: DC
• Input Voltage (VDC): 3 – 8
• Output Voltage Rating (Vrms): 24 – 280
• Output Switching: Zero
• Primary Product Color: Black
• Relay Connection Type: PCB Termination
• Terminal Configuration: Solder Pins
• Product Mount Type: Board Mount
• Operating Temperature Range: -30 – 80 °C [ -22 – 176 °F ]
• Insulation Initial Dielectric Between Contacts & Coil (Vrms): 4000
• Output Current Type: AC
• Brand: POTTER & BRUMFIELD
