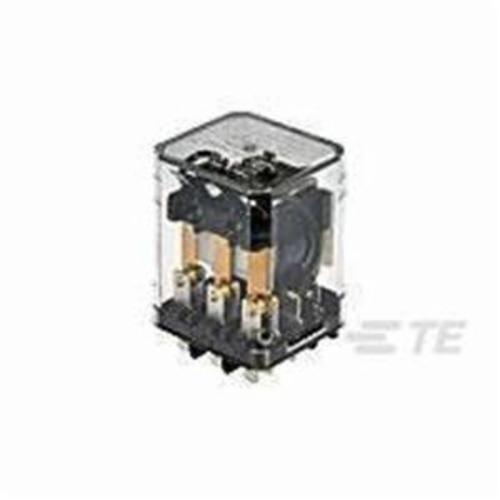

TE Connectivity KUP-11A15-120 General Purpose Relay 120VAC 10A

Product Description

The TE Connectivity KUP-11A15-120 is a versatile double pole, double throw (DPDT) general purpose relay designed for robust performance in industrial environments. Featuring a 120 VAC coil and a contact rating of 10 amps, this product ensures efficient operation in varied applications.

• DPDT configuration supports the control of two independent circuits simultaneously.
• Hermetically sealed coil enhances durability by protecting against environmental elements.
• Low power consumption and a broad operating temperature range from -45 to 55 degrees Celsius.

Product Highlights

Perfect for applications such as HVAC systems, industrial automation, and various control systems where reliable performance is critical. The compact design facilitates easy installation in tight spaces.

Product Information

Standard Information

• Brand: TE Connectivity
• MPN: KUP-11A15-120

Technical Specifications

• Amperage Rating: 10 A
• Coil Voltage: 120 VAC
• Contact Form: 2CO (Double Contact Output)
• Number of Pins: 8
• Mounting Type: Socket mount
• Terminal Type: Quick-Connect/Solder
• Frequency Rating: 50/60 Hz
• Temperature Rating: -45 to 55 degrees Celsius
• Standards/Approvals: UL E22575, CSA LR15734, RoHS Compliant
