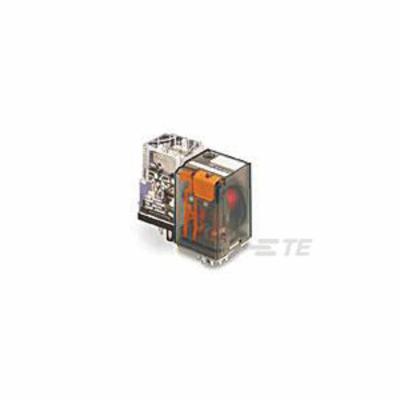

TE Connectivity KRPA-11AG-24 General Purpose Relay 24VAC 10A Tyco# 1-1393105-2

Product Description

The TE Connectivity KRPA-11AG-24 general-purpose relay is designed for robust performance in industrial applications. It functions with a 24VAC coil, providing reliable operation with a DPDT contact and a 10A capacity. Ideal for use in environments from -45 to 55 degrees Celsius.

• Compact dimensions for installation in tight spaces: 1.406 in Length x 1.405 in Width x 2 in Height.
• Integrated with high insulation resistance up to 1000 Vrms, ensuring operational safety.
• Designed for versatility with applications across lighting systems, baggage handling, and marine usage.

Product Highlights

The relay offers a plug-in terminal for easy installation and maintenance, excellent for professionals in building management and equipment manufacturing.

Product Information

Standard Information

• Operational Temperature Range: -45 to 55 degrees Celsius
• Terminal Type: Plug-In

Technical Specifications

• Coil Voltage: 24 VAC
• Contact Form: 2 Form C (CO)
• Contact Rating: 10 A
• Number of Poles: 2
• Series: KPPA
• Standards/Approvals: UL File No. E22575, CSA File No. LR15734
