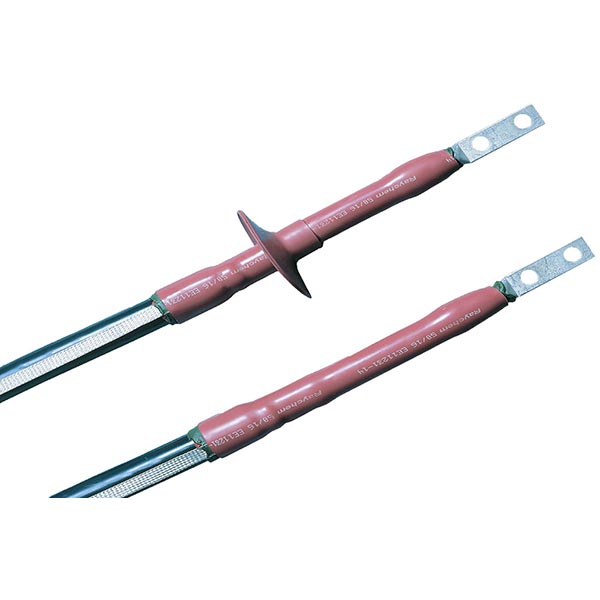

TE Connectivity HVT-Z-153-SG Heat Shrink Termination Kit 15 kV

Product Description

TE Connectivity HVT-Z-153-SG is a heat shrink termination kit designed for high-voltage applications. This kit is suitable for cable diameters from zero point seventy-eight to one point one fifty-two inches and can accommodate conductor sizes from four hundred to one thousand kcmil. It features built-in stress control technology and is designed for both indoor and outdoor use.

• Heat shrink technology
• Voltage rating of 15 kV
• Compatible with plastic insulation

Product Highlights

This kit provides moisture seals and electrical stress control, making it ideal for cable installations.

Product Information

Standard Information

• Manufacturer: TE Connectivity
• Part Number: HVT-Z-153-SG

Technical Specifications

• Application: For copper tape, wire shield, lead sheath, and UniShield cables, indoor/outdoor applications
• Cable Diameter: 0.78 to 1.152 inches
• Conductor Size: 400 to 1000 kcmil
• Insulation Size: 1.1 to 1.75 inches
• Material: Plastic
• Series: HVT
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS 2011/65/EU, ELV Compliant, IEEE 48
• Voltage Rating: 15 kV
