Te Connectivity 305183 Extraction Tool Size 16

Product Description

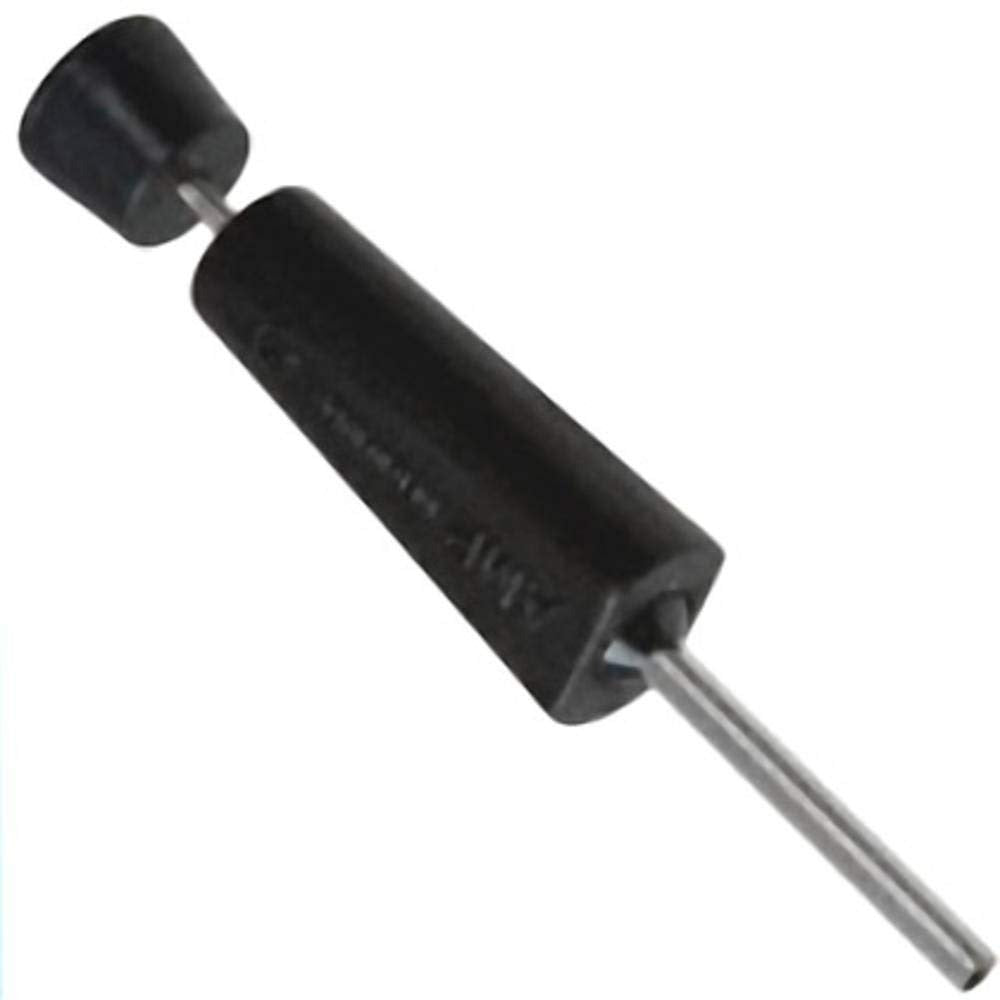

The TE CONNECTIVITY 305183 is a hand extraction tool designed to remove size 16 pin and socket contacts from Type II and Type III connector housings. Built with a steel and plastic body, it delivers the rigidity needed for consistent, damage-free contact removal during connector service and repair. At 5.53 inches in length, it provides a comfortable grip and adequate reach for working in tight connector cavities. Electricians, panel technicians, and field service pros use this tool when servicing multi-pin connectors in control panels, low-voltage wiring harnesses, and industrial equipment.

This extraction tool is suited for bench and field use wherever Type II and Type III connector systems with size 16 contacts are installed. Common applications include electrical control systems, instrumentation wiring, and industrial automation assemblies. It is a single-piece tool intended for individual contact extraction without damaging the connector housing or adjacent pins.

Key Features

• Designed for size 16 pin and socket contacts in Type II and Type III connector housings
• Steel and plastic construction for durability and controlled flex
• 5.53-inch overall length for reach into connector cavities
• Black finish for easy identification in a tool kit
• RoHS compliant

Compatibility

Compatible with Type II and Type III connector housings using size 16 pin and socket contacts, as specified by TE CONNECTIVITY for this tool.

Installation Notes

This tool is used by electricians and wiring technicians during connector maintenance and repair. Always de-energize and lock out the circuit before servicing any connector. Insert the extraction tool carefully into the contact cavity to release the retention latch without bending or cracking the housing. Follow connector manufacturer service documentation for proper extraction depth and technique.
