Te Connectivity 1SNK506150R0000 Terminal Block Screw Clamp 2 Position (DIN Rail)

Product Description

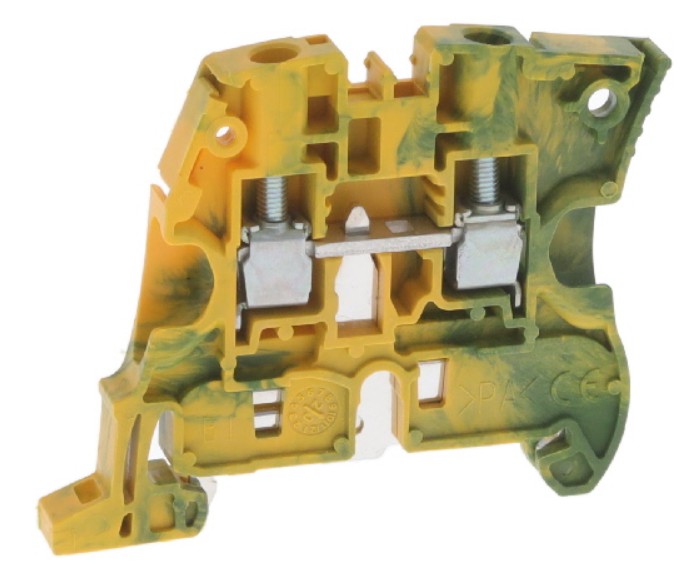

Te Connectivity 1SNK506150R0000 is a 2-position ground terminal block for DIN-rail mounting that provides screw-type terminations for grounding conductors. It accepts 10-24 AWG (0.2-6 mm2) conductors, features polyamide (nylon) insulation with UL94 V-0 flammability rating, and offers a 6.0 mm terminal width with 10.5 mm stripping length. Electrical ratings include 2200 V dielectric, 8000 V impulse, and 720 A short-time withstanding current (1 s).

• Screw termination; accepts 10-24 AWG (0.2-6 mm2) with 6.0 mm terminal width and 10.5 mm stripping length
• Polyamide (PA) insulation, UL94 V-0 flammability; RoHS3 compliant, MSL 1
• DIN-rail mountable (TH35-15 and TH35-7.5), IP20; dielectric 2200 V, impulse 8000 V, 720 A short-time (1 s)

Product Highlights

2-position DIN-rail ground terminal block, screw connection, 10-24 AWG (0.2-6 mm2), UL94 V-0, 2200 V dielectric, IP20.

Product Information

Standard Information

• Brand: TE CONNECTIVITY
• Manufacturer Part Number: 1SNK506150R0000

Technical Specifications

• Brand: TE Connectivity ENTRELEC
• Manufacturer Part Number: 1SNK506150R0000
• Series: SNK, ZS
• Category: Terminal Blocks; DIN Rail, Channel
• Type: Ground / Earth terminal block
• Number of Positions: 2
• Number of Levels: 1
• Termination Style: Screw
• Wire Gauge (AWG): 10-24 AWG
• Wire Gauge (mm2): 0.2-6 mm2
• Conductor Area (mm2) (max): 6 mm2
• Terminal Width: 6.0 mm (per position)
• Stripping Length: 10.5 mm
• Material - Insulation: Polyamide (PA), Nylon
• Flammability Rating: UL94 V-0
• Mounting Type: DIN Rail
• DIN Rail Compatibility: TH35-15, TH35-7.5
• Rated Dielectric Withstanding Voltage: 2200 V
• Impulse Withstanding Voltage: 8000 V (IEC)
• Short-Time Withstanding Current (1 s): 720 A
• IP Rating: IP20
• Product Length: 47.4 mm (1.87 in)
• Product Height: 59.5 mm (2.34 in)
• Product Weight: 13.7 g (0.03 lb)
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level: 1 (Unlimited)
• ECCN: EAR99
• HTSUS: 8536.90.4000
