Te Connectivity 1SNK505316R0000 Screw Clamp Terminal Block Feed-Through & Disconnect 5.2 mm 4-Position DIN Rail

Product Description

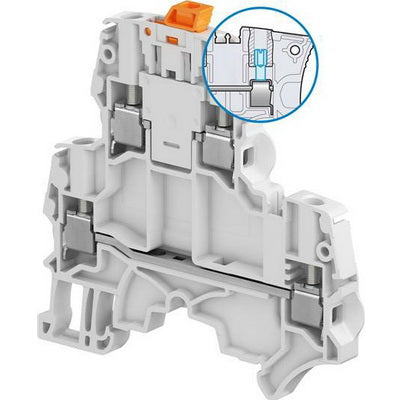

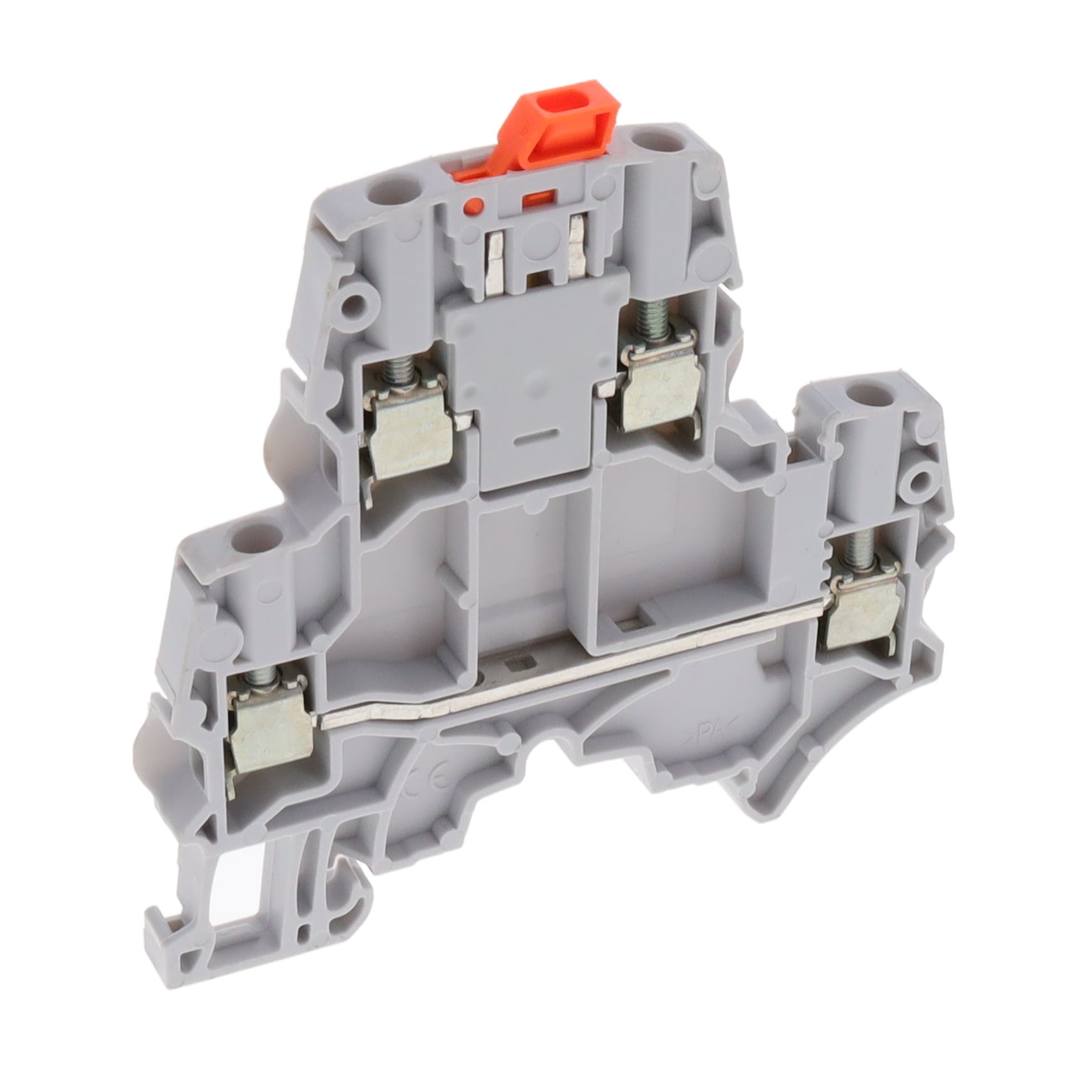

TE Connectivity 1SNK505316R0000 is a screw-clamp modular terminal block providing feed-through and disconnect functionality in a 4-position, two-level design. The unit features 5.2 mm pitch, DIN-rail mounting (TH35-15 | TH35-7.5), polyamide housing with UL94 V-0 flammability, and an operating temperature range of -55 to 110 °C. Electrical ratings include up to 27 A (UL/CSA), 25 A (IEC) and 300 V (UL/CSA) / 630 V (IEC).

• Screw-clamp feed-through and blade disconnect; two-deck modular design with 4 positions and 5.2 mm pitch
• Electrical ratings: up to 27 A (UL/CSA), 25 A (IEC); voltage 300 V (UL/CSA) / 630 V (IEC); dielectric withstand 1890 V
• DIN-rail mount (TH35-15 | TH35-7.5), polyamide housing (UL94 V-0), conductor capacity 0.22–4 mm² (AWG 24–10), wire stripping length 10.5 mm

Product Highlights

4-position, 5.2 mm pitch DIN-rail terminal block with screw-clamp connections, feed-through and disconnect function, rated up to 27 A, polyamide housing, -55 to 110 °C

Product Information

Standard Information

• Brand: TE CONNECTIVITY
• Manufacturer Part Number: 1SNK505316R0000
• Country of Origin: France

Technical Specifications

• Brand: TE Connectivity (ENTRELEC)
• Manufacturer Part Number: 1SNK505316R0000
• Manufacturer Model / Alias: ZS4-D2-S-T2
• Product Type: Screw clamp terminal block
• Function: Feed-through & disconnect
• Number of Positions: 4
• Number of Levels: 2
• Pitch / Net Width: 5.2 mm (0.205 in)
• Mounting Type: DIN rail (TH35-15 | TH35-7.5)
• Connection Type: Screw clamp
• Housing Material: Polyamide (PA)
• Flammability Rating: UL94 V-0
• Current Rating (UL/CSA): 27 A
• Current Rating (IEC): 25 A
• Voltage Rating (UL/CSA): 300 V
• Voltage Rating (IEC): 630 V
• Dielectric Withstanding Voltage: 1890 V
• Impulse Withstanding Voltage (IEC): 8000 V
• Operating Temperature Range: -55 to 110 °C
• Installation Temperature Range: -5 to 40 °C
• Conductor Cross-Section (mm2): 0.22–4 mm2
• Conductor Cross-Section (AWG): 24–10 AWG
• Wire Stripping Length: 10.5 mm
• Short-time Withstanding Current @ 1s: 480 A
• IP Rating: IP20
• Tool Size: 3.5 mm
• Product Weight: 16.2 g
• Terminal Disconnect Type: Blade
• Application: Panel and DIN-rail wiring, industrial and control wiring
