Te Connectivity 1SNK145031R0000 Marker Card 201-300 (100 markers/card horizontal)

Product Description

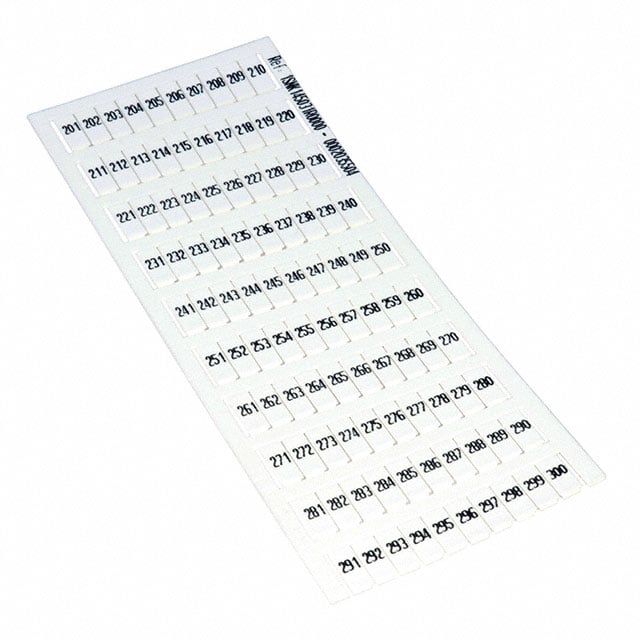

TE Connectivity 1SNK145031R0000 is a pre-printed marker card (MC512PA) containing markers numbered 201 through 300 for horizontal mounting on SNK series terminal blocks. The card is made of polyamide with a net width/pitch of 5.2 mm and a UL 94V-2 flammability rating. It is rated for operating temperatures from -55 to 110 °C and provides three-digit horizontal markers and up to eight-digit vertical markers.

• Pre-printed markers 201–300; 100 markers per card; compatible with SNK / MC512PA terminal blocks
• Polyamide construction, UL 94V-2 flammability rating, operating temperature -55 to 110 °C
• Net width/pitch 5.2 mm (0.205 in); three digits per marker (horizontal), eight digits per marker (vertical)

Product Highlights

Pre-printed 201–300 marker card for SNK/MC512PA terminal blocks; polyamide material; 5.2 mm pitch; -55 to 110 °C; UL 94V-2.

Product Information

Standard Information

• Brand: TE CONNECTIVITY
• Manufacturer Part Number: 1SNK145031R0000
• Country of Origin: France

Technical Specifications

• Brand: TE Connectivity (ENTRELEC)
• Manufacturer Part Number: 1SNK145031R0000
• Alternate Part Number: MC512PA
• Product Name: Marker card (pre-printed)
• Series: SNK / MC512PA
• Product Type: Marker Card / Connector Label (snap-in)
• Marking Range: 201 -> 300
• Markers per Card: 100
• Orientation: Horizontal
• Material: Polyamide (PA)
• Net Width (Pitch): 5.2 mm (0.205 in)
• Number of Digits per Marker - Horizontal: 3
• Number of Digits per Marker - Vertical: 8
• Operating Temperature Range: -55 to 110 °C (-67 to 230 °F)
• Storage Temperature Range: -55 to 110 °C (-67 to 230 °F)
• UL Flammability Rating: UL 94V-2
• Weight: 10 g (0.353 oz)
• Product Height: 12 mm (0.472 in)
• Product Width: 5.2 mm (0.205 in) (net pitch per marker)
• Product Depth: 4.8 mm (0.189 in)
• Compatible With: SNK series terminal blocks
• RoHS Status: ROHS3 Compliant
• Country of Origin: France
• Packaging: Number of cards per package: 1; manufacturer standard pack: 5
• Base Product Number: 1SNK
• ECCN: EAR99
• HTS Code: 3926.90.9989
• EAN: 3472591450316
