Te Connectivity 1SNK145021R0000 Marker Card Horizontal (1 Card)

Product Description

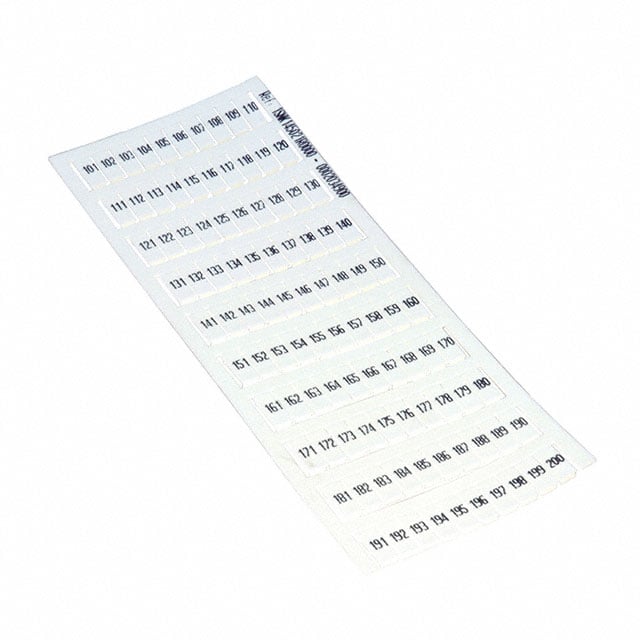

Te Connectivity 1SNK145021R0000 is a pre-printed marker card (MC512PA) for terminal block and strip identification with legends 101 to 200 in horizontal orientation. The polyamide card has a marker length of 5 mm and marker width/pitch of 5.2 mm, operates from -55 to 110 °C, and meets UL 94V-2 flammability requirements. The item is supplied as a single card intended for terminal block marking applications.

• Pre-printed legend 101 -> 200 in horizontal orientation (MC512PA)
• Polyamide construction; operating temperature -55 to 110 °C; UL 94V-2 rated
• Marker length 5 mm, marker width/pitch 5.2 mm; 3 digits per horizontal marker; single card package

Product Highlights

Pre-printed horizontal marker card 101–200; polyamide; 5 mm marker length, 5.2 mm pitch; operating range -55 to 110 °C; UL 94V-2.

Product Information

Standard Information

• Brand: TE CONNECTIVITY
• Manufacturer Part Number: 1SNK145021R0000
• Country of Origin: Poland

Technical Specifications

• Manufacturer: TE Connectivity
• Manufacturer Part Number: 1SNK145021R0000
• TE Internal Description: MC512PA 101->200 Horizontal
• Type: Marker Card
• Series: SNK, MC512PA
• Legend: 101 -> 200
• Orientation: Horizontal
• Material: Polyamide
• Operating Temperature Range: -55 – 110 °C [-67 – 230 °F]
• UL Flammability Rating: UL 94V-2
• Number of Cards per Package: 1
• Number of Digits per Marker - Horizontal: 3
• Marker Length: 5 mm
• Marker Width: 5.2 mm
• Pitch Spacing: 5.2 mm
• Product Height: 12 mm [0.472 in]
• Product Length: 5 mm [0.197 in]
• Product Width: 5.2 mm [0.205 in]
• Product Depth: 4.8 mm
• Product Weight: 10 g [0.353 oz]
• For Use With: Terminal blocks and strip marking accessories; compatible with SNK series
• Packaging: Single card (individual package)
• Color: White
• Country of Origin: Poland
• RoHS Compliance: Yes
• REACH Status: REACH Unaffected
• ECCN: EAR99
• Moisture Sensitivity Level: 1 (Unlimited)
• SVHC: No SVHC (04-Feb-2026)
