Te Connectivity 1SNA195638R2300 Screw Clamp Terminal Block 6 mm Spacing 5 Position 019563823

Product Description

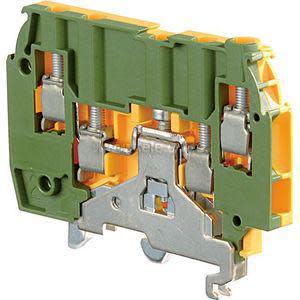

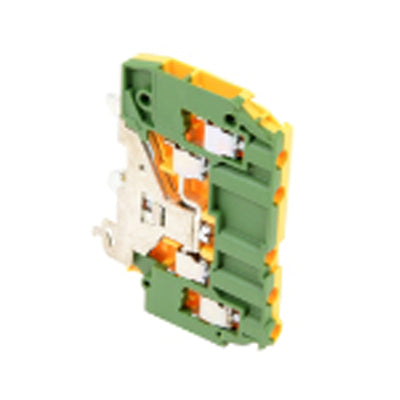

TE Connectivity 1SNA195638R2300 is a ground-function screw clamp terminal block designed for DIN rail mounting. The single-level terminal block features 6 mm pitch and five positions, accepts flexible conductors 0.22–4 mm2 or rigid conductors 0.2–4 mm2, and uses a screw clamp termination. The polyamide 6.6 housing meets UL94 V-0, snaps onto G32 and TH35 rails, and has a short-time withstand current rating of 480 A (1 s).

• Ground-function screw clamp terminal block, 6 mm pitch, 5 positions.
• Accepts flexible 0.22–4 mm2 and rigid 0.2–4 mm2 conductors; wire stripping length 9.5 mm; tightening torque 0.5 Nm (4.4 in-lbs).
• Polyamide 6.6 housing with UL94 V-0, snaps onto G32 | TH35-15 | TH35-7.5 DIN rails; short-time withstand current 480 A (1 s).

Product Highlights

DIN rail ground terminal, 6 mm pitch, 5-position screw clamp, accepts up to 4 mm2 conductors

Product Information

Standard Information

• Brand: TE CONNECTIVITY
• Manufacturer Part Number: 1SNA195638R2300
• Country of Origin: France

Technical Specifications

• Manufacturer Part Number: 1SNA195638R2300
• Brand: TE Connectivity
• Alternate Manufacturer Part Number: 019563823
• Series: SNA
• Product Type: Screw Clamp Terminal Block
• Block Function: Ground
• Terminal Type: Screw Clamp
• Spacing (Pitch): 6 mm
• Number of Positions: 5
• Number of Circuits: 1
• Rated Cross Section: 4 mm2
• Flexible Wire Range: 0.22 to 4 mm2
• Rigid Wire Range: 0.2 to 4 mm2
• Wire Stripping Length: 9.5 mm
• Tightening Torque: 0.5 Nm (4.4 in-lbs)
• DIN Rail Mounting Type: G32 | TH35-15 | TH35-7.5
• Connector Mounting Type: DIN Rail
• Mounting: Snaps onto symmetrical and asymmetrical DIN rails
• Housing Material: Polyamide 6.6
• Flammability Rating: UL94 V-0
• Short-time Withstand Current: 480 A (1 s)
• Operating Temperature Range: -55 to 110 C
• Installation Temperature Range: -5 to 40 C
• Product Height: 63.5 mm
• Product Length: 40.5 mm
• Product Width: 6 mm
• Product Depth: 40.5 mm
• Product Weight: 22 g
• Circuit Application: Signal / Ground
• Rated Voltage: 600 V
• Current Rating: 32 A
• Approvals: UL; CSA; CE; RoHS
• UL File Number: E60645
