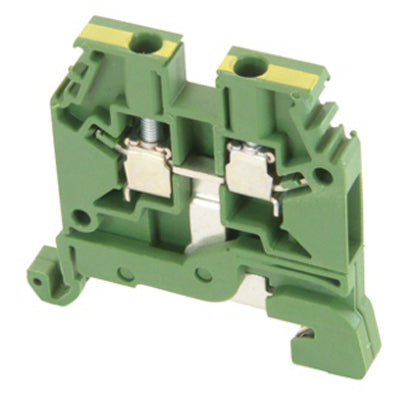

Te Connectivity 1SNA165809R0100 Screw Clamp Terminal Block 6 mm Spacing 6 Position (016580901)

Product Description

TE Connectivity 1SNA165809R0100 is a screw clamp ground terminal block in the SNA series designed for DIN rail mounting. The feed-through block features 6 mm pitch, six positions and accepts up to 4 mm2 (12 AWG) conductors with screw termination. It has a polyamide 6.6 housing, rated short-time withstanding current 480 A (1 s), dielectric withstanding voltage up to 3500 V, and an operating range of -55 to 110 degrees C.

• DIN rail mount (TH35-15 | TH35-7.5) feed-through ground terminal block with screw termination
• 6 mm spacing, 6 positions, accepts rigid wires 0.20 4 mm2 (up to 12 AWG) and flexible 0.220 4 mm2
• Polyamide 6.6 housing, short-time withstand 480 A (1 s), dielectric test up to 3500 V, operating -55 to 110 0C

Product Highlights

SNA series ground terminal block, 6 mm pitch, 6 positions, screw clamp termination, DIN rail mount, 4 mm2 capacity

Product Information

Standard Information

• Brand: TE CONNECTIVITY
• Manufacturer Part Number: 1SNA165809R0100
• Country of Origin: France

Technical Specifications

• Brand: TE Connectivity (ENTRELEC)
• Manufacturer Part Number: 1SNA165809R0100
• Alternate Manufacturer Part Number: 016580901
• Series: SNA
• Product Type: Screw clamp terminal block / Feed-through
• Block Function: Ground
• Mounting Type: DIN Rail Mount
• DIN Rail Mounting Type: TH35-15 | TH35-7.5
• Termination Method: Screw terminal
• Spacing: 6 mm [0.235 in]
• Number of Positions: 6
• Number of Circuits: 1
• Rated Cross-Section: 4 mm2
• Rigid Wire Range: 0.2 0 4 mm2
• Flexible Wire Range: 0.22 0 4 mm2
• Wire Size (AWG): 12 0 24 AWG (accepts up to 12 AWG per clamp)
• Wire Stripping Length: 9.5 mm [0.374 in]
• Tightening Torque (Nm): 0.5
• Tightening Torque (in-lbs): 4.4
• Tool Size: 4 mm [0.157 in]
• Housing Material: Polyamide 6.6
• Short-Time Withstanding Current (1 s): 480 A
• Dielectric Withstanding Voltage (Max): 3500 V
• Operating Temperature Range: -55 to 110 0C
• Installation Temperature Range: -5 to 40 0C
• Product Height: 50 mm
• Product Length: 41 mm
• Product Width: 6 mm [0.235 in]
• Product Weight: 12 g [0.423 oz]
• UL Flammability Rating: UL 94V-0
• Current Rating: 30 A
• Voltage Rating (IEC/UL): 300 V (reported on some listings)
• RoHS Compliance: Yes
• Type Overview: 4 mm2 ground block with rail contact, feed-through terminal
