Te Connectivity 1SNA165113R1600 Screw clamp terminal block 480 A (6 mm/2 position) 016511316

Product Description

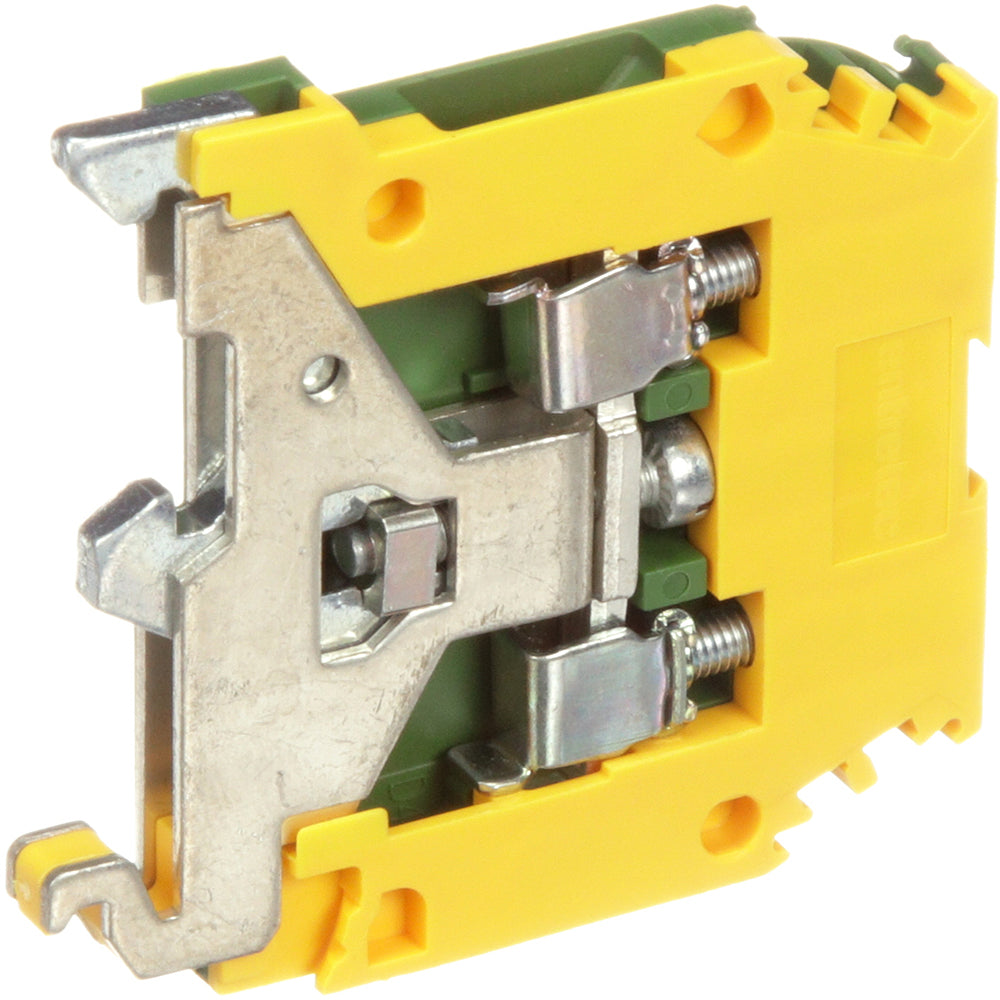

Te Connectivity 1SNA165113R1600 is a screw clamp ground terminal block designed for DIN-rail mounting with 6 mm spacing and two positions. It provides screw termination for conductors up to 4 mm2, a short-time withstanding current rating of 480 A (1 s), and a polyamide 6.6 housing rated UL 94V-0. The block supports G32 and TH35 rails and operates from -55 to 110 degrees C.

• Screw clamp ground terminal block, 2 positions, 6 mm pitch; DIN-rail mountable (G32 | TH35-15 | TH35-7.5)
• Accepts up to 4 mm2 (approx. 12 AWG) conductors; wire stripping length 9.5 mm; tightening torque 0.5 Nm (4.4 in-lbs)
• Polyamide 6.6 housing, UL 94V-0 flammability rating, short-time withstanding current 480 A (1 s); operating temperature -55 to 110 C

Product Highlights

DIN-rail ground screw terminal block, 6 mm spacing, 2 positions, accepts up to 4 mm2 (approx. 12 AWG), 480 A (1 s) short-time rating, polyamide 6.6 housing

Product Information

Standard Information

• Brand: TE CONNECTIVITY
• Manufacturer Part Number: 1SNA165113R1600

Technical Specifications

• Brand: Te Connectivity
• Manufacturer Part Number: 1SNA165113R1600
• Alternate Part Number: 016511316
• Series: SNA Series
• Product Type: Screw clamp terminal block
• Block Function: Ground
• Terminal Type: Screw clamp
• Mounting Type: DIN rail (G32 | TH35-15 | TH35-7.5)
• Spacing: 6 mm
• Number of Positions: 2
• Number of Poles: 2
• Wire Size (AWG): Up to 12 AWG
• Wire Size (mm2): 4 mm2
• Conductor Area: 4 mm2
• Wire Size AWG Min: 22 AWG (per alternate source)
• Wire Size AWG Max: 12 AWG (per alternate source)
• Short-time Withstanding Current Rating (1 s): 480 A
• Current Rating: 32 A
• Rated Voltage: 600 V
• Housing Material: Polyamide 6.6
• Flammability Rating: UL 94V-0
• Tightening Torque (Nm): 0.5
• Tightening Torque (in-lbs): 4.4
• Tool Size: 4 mm
• Wire Stripping Length: 9.5 mm
• DIN Rail Compatibility: G32 | TH35-15 | TH35-7.5
• Product Height: 44.5 mm
• Product Length: 40.5 mm
• Product Width: 6 mm
• Product Weight: 21 g
• Operating Temperature Range: -55 to 110 C
• Installation Temperature Range: -5 to 40 C
• RoHS Compliant: Yes
• RoHS Phthalates Compliant: Yes
• UL/Certifications: UL File #E60645; CSA; CE
