Te Connectivity 1SNA115529R1500 Screw Clamp Terminal Block Disconnect 15 A 500 V (8 mm) M6/8.STP1

Product Description

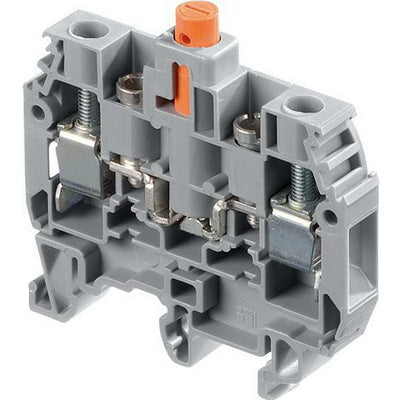

TE Connectivity 1SNA115529R1500 is an Entrelec SNA series 2-position screw clamp terminal block with a push-turn knob disconnect for DIN-rail signal circuits. It provides 8 mm spacing, screw termination and a polyamide 6.6 housing rated UL 94V-0. Rated 15 A (IEC) and 500 VAC (IEC) / 600 V (CSA), it accepts conductors from 0.5 mm² to 6 mm² (flexible) and features an 11 mm wire stripping length and -55 to 110 °C operating range.

• Screw-clamp termination with push-turn knob disconnect; short-time withstand 720 A @ 1 s
• DIN-rail mounting (G32, TH35-15, TH35-7.5), 2-position design with 8 mm spacing
• Rated 15 A (IEC), 500 V (IEC) / 600 V (CSA); conductor capacity flexible 0.5–6 mm², rigid 0.5–10 mm²

Product Highlights

2-position, 8 mm spacing; push-turn disconnect; rated 15 A/500 VAC; polyamide 6.6 housing

Product Information

Standard Information

• Brand: TE CONNECTIVITY
• Manufacturer Part Number: 1SNA115529R1500
• Country of Origin: France

Technical Specifications

• Brand: TE Connectivity (ENTRELEC)
• Manufacturer Part Number: 1SNA115529R1500
• Alternate Part Number: M6/8.STP1; 011552915
• Product Type: Screw clamp terminal block
• Series: SNA
• Function: Disconnect
• Number of Positions: 2
• Number of Poles: 2
• Number of Levels: 1
• Product Spacing: 8 mm
• Rated Current (IEC): 15 A
• Rated Voltage (IEC): 500 V
• Voltage Rating (CSA): 600 V
• Short-time Withstanding Current (1 s): 720 A
• Termination Method: Screw terminal (screw clamp)
• Disconnect Type: Push-turn knob
• DIN Rail Mounting Type: G32 | TH35-15 | TH35-7.5
• Mounting Type: DIN rail
• Housing Material: Polyamide 6.6
• Material Flammability Rating: UL 94V-0
• Operating Temperature Range: -55 to 110 °C
• Installation Temperature Range: -5 to 40 °C
• Product Weight: 21 g
• Wire Stripping Length: 11 mm
• Tightening Torque: 0.8 Nm (7.1 in-lbs)
• Conductor Cross-Section: Flexible 0.5–6 mm²; Rigid 0.5–10 mm² (up to 8 AWG)
• Wire Size (AWG): 8 (reference)
• IP Rating: IP10
• Certifications / Standards: IEC 60947-1; CSA; IEC 60529; RoHS (per supplier data)
• Applications: Signal wiring; control panels; industrial automation
• Tool Size: 4 mm
• Validated Dimensions (L x W x H): 2.185 x 1.929 x 0.315 inches
