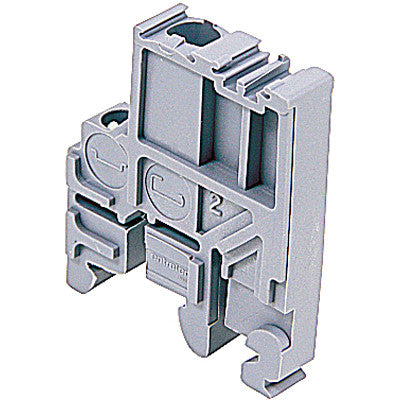

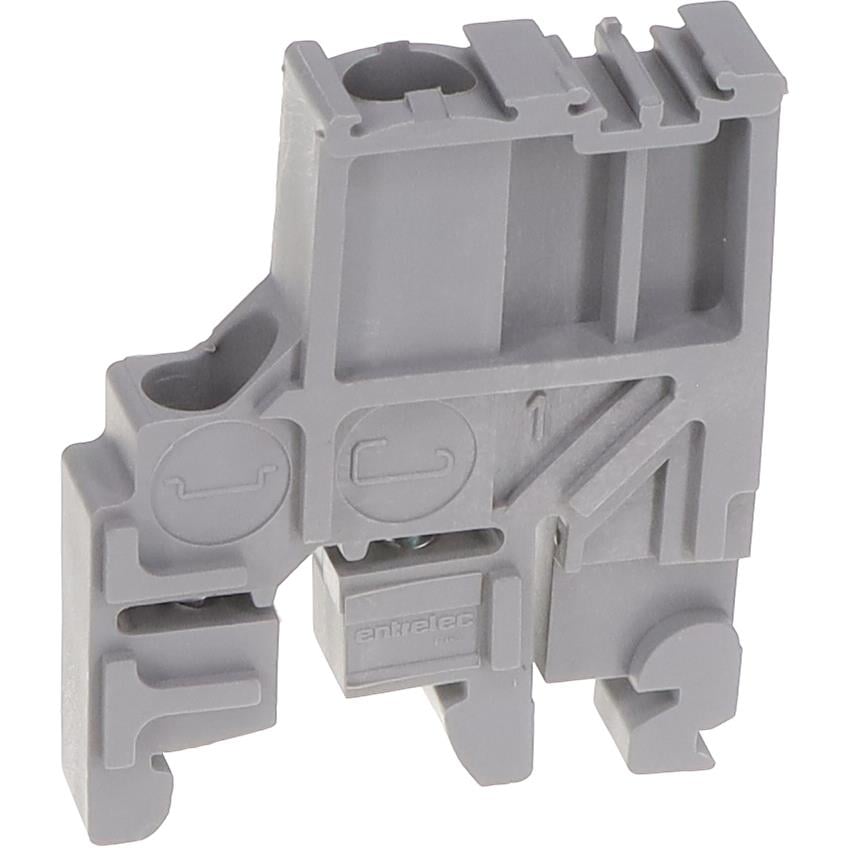

Te Connectivity 1SNA114836R0000 End Stop 44.5 mm (1.75 in) Length

Product Description

Te Connectivity part 1SNA114836R0000 is an end stop accessory for terminal block assemblies, used to secure or terminate terminal block rows and to separate terminal groups on DIN-rail systems. The component measures 44.5 mm (1.75 in) and has an operating temperature range of -55 to 105 °C (-67 to 221 °F). It is compatible with ENTRELEC/SNK and SNA series terminal blocks and suits terminals up to 16 mm².

• End stop accessory (mounting and retention) for terminal block assemblies and DIN-rail installations
• Product length: 44.5 mm (1.75 in); operating temperature range: -55 to 105 °C (-67 to 221 °F)
• Compatible with ENTRELEC/SNK and SNA series terminal blocks; suitable for terminals up to 16 mm²; RoHS compliant

Product Highlights

End stop for securing and separating DIN-rail terminal block assemblies; 44.5 mm length; -55 to 105 °C operating range; compatible with SNK/SNA series; RoHS compliant.

Product Information

Standard Information

• Brand: TE CONNECTIVITY
• Manufacturer Part Number: 1SNA114836R0000

Technical Specifications

• Brand: Te Connectivity
• Manufacturer Part Number: 1SNA114836R0000
• Accessory Type: End Stop
• Product Length: 44.5 mm (1.75 in)
• Operating Temperature Range: -55 to 105 °C (-67 to 221 °F)
• Compatibility: ENTRELEC/SNK terminal blocks; SNA series terminal blocks (includes AMP 131ETTM4TM4, D 2.5/5, M120/35, M300/42, M35/26, M70/31)
• Suitable For Terminals Up To: 16 mm²
• RoHS Compliance: RoHS compliant
• Applications: DIN-rail terminal block assemblies; mounting and retention accessory
• CAD Models Available: Symbol, footprint, 3D STEP/IGES/STL and other CAD formats
• ECCN: EAR99
• HTSUS: 8538.90.8180
• Manufacturer Internal Description: BAMH
