Te Connectivity 1SNA113548R2600 Jumper Bar 35 A (10 Pole) 011354826

Product Description

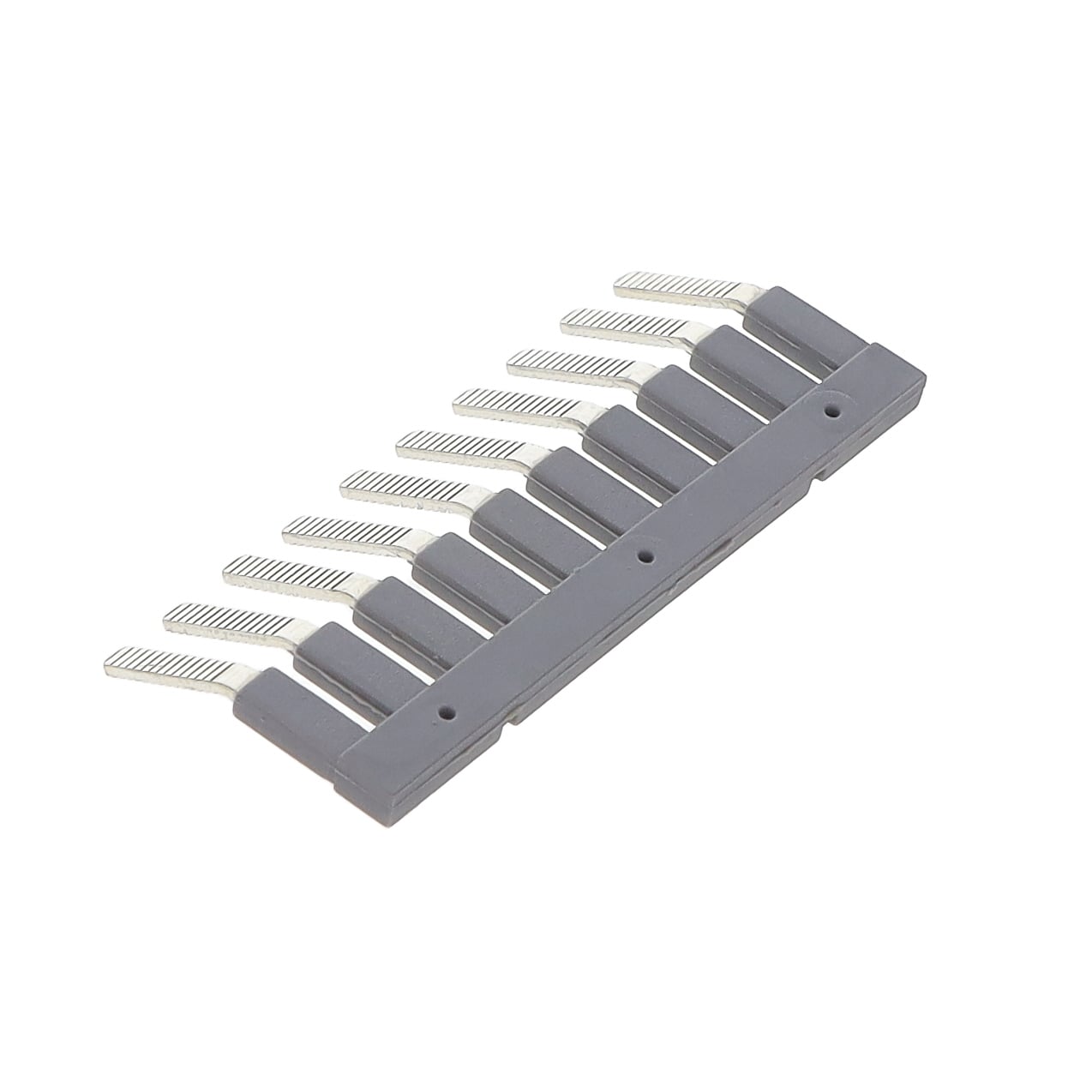

Te Connectivity 1SNA113548R2600 is a jumper bar (PC6-10) for Entrelec SNA terminal blocks that provides conductive links across ten poles with a maximum contact current rating of 35 A. The lateral polyamide jumper features angled flat pins with a 6.00 mm pitch and compact dimensions of approximately 22.5 mm x 10 mm x 24.3 mm. The part is RoHS compliant.

• Ten-pole PC6 style jumper for SNA series DIN-rail terminal blocks
• Contact current rating: 35 A for commoning adjacent terminals
• Polyamide lateral jumper with angled flat pins, 6.00 mm pitch; dimensions 22.5 x 10 x 24.3 mm; RoHS compliant

Product Highlights

10-position lateral jumper bar for SNA series terminal blocks; 35 A rating; polyamide construction with angled flat pins and 6.00 mm pitch.

Product Information

Standard Information

• Brand: TE CONNECTIVITY
• Manufacturer Part Number: 1SNA113548R2600
• Country of Origin: France

Technical Specifications

• Manufacturer: TE Connectivity
• Brand: Te Connectivity
• Manufacturer Part Number: 1SNA113548R2600
• Alternate Part Number: 011354826
• TE Internal Number: 1SNA113548R2600
• TE Internal Description: PC6-10
• Product Type: Terminal block jumper / conducting accessory
• Type: Jumper Bar / Jumper Comb
• Series: ENTRELEC SNA
• Number of Poles: 10
• Current Rating: 35 A (max contact current)
• Material: Polyamide
• Style: Lateral, angled flat pins
• Pitch: 0.236 in (6.00 mm)
• Dimensions: 0.89 x 0.39 x 0.96 in (22.5 x 10 x 24.3 mm)
• Mounting Type: DIN-rail terminal block accessory
• RoHS Compliance: Yes
• Country of Origin: FR
• ECCN: EAR99
• HTS/HTSUS: 8536.90.4000 / 8538908180
• Part Status: Active
