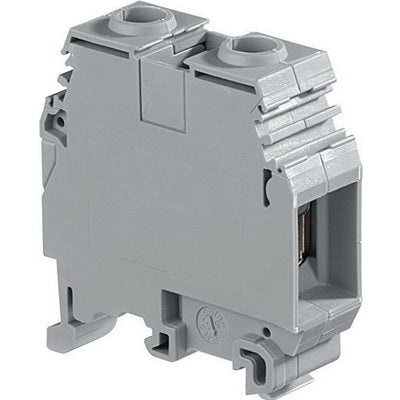

Te Connectivity 1SNA105124R1600 Screw Clamp Feed-Through Terminal Block 150 A (16 mm Spacing) 010512416

Product Description

TE Connectivity 1SNA105124R1600 is a 2-position Entrelec SNA screw clamp feed-through terminal block for power and signal applications. It mounts on standard DIN rail (G32 / TH35-15 / TH35-7.5), has a 16 mm pitch and polyamide 6.6 housing, and accepts conductors up to 35 mm2 (rigid up to 50 mm2 / AWG 10–0). Rated up to 150 A (UL/CSA) and 1000 V (IEC), operating −55 to 110 °C.

• Screw-clamp feed-through terminal block, 2 positions, 16 mm spacing
• Accepts 6–35 mm2 flexible and up to 6–50 mm2 rigid conductors (AWG 10–0), 17 mm stripping length
• Electrical ratings: 150 A (UL/CSA), 125 A (IEC), 1000 V IEC / 600 V UL; dielectric 3500 V; impulse 8 kV

Product Highlights

DIN-rail mountable screw terminal for industrial power and signal wiring with polyamide housing and wide temperature range.

Product Information

Standard Information

• Brand: TE CONNECTIVITY
• Manufacturer Part Number: 1SNA105124R1600

Technical Specifications

• Brand: TE Connectivity (ENTRELEC SNA series)
• Manufacturer Part Number: 1SNA105124R1600
• Equivalent / Replacement Part Number: 010512416
• Product Type: Screw Clamp Feed-Through Terminal Block
• Series: SNA
• Function: Feed-Through
• Number of Positions: 2
• Number of Poles: 2
• Number of Levels: 1
• Product Spacing: 16 mm [0.629 in]
• Mounting Type: DIN Rail
• DIN Rail Compatibility: G32 | TH35-15 | TH35-7.5
• Housing Material: Polyamide 6.6 (PA, Nylon)
• Material Flammability Rating: UL94 V-0
• Termination Method: Screw Terminal (Screw Clamp)
• Wire Size (AWG): AWG 10–0 (up to 1/0)
• Wire Size (mm2): Flexible 6–35 mm2; Rigid up to 6–50 mm2
• Wire Stripping Length: 17 mm [0.669 in]
• Current Rating (UL/CSA): 150 A
• Current Rating (IEC): 125 A
• Voltage Rating (IEC): 1000 V
• Voltage Rating (UL/CSA): 600 V
• Dielectric Withstanding Voltage (Max): 3500 V
• Impulse Withstanding Voltage Rating (IEC): 8000 V
• Short-Time Withstanding Current Rating @ 1s: 4200 A
• Tightening Torque (Nm): 2.8
• Tightening Torque (in-lbs): 24.9
• Operating Temperature Range: -55 to 110 °C
• Installation Temperature Range: -5 to 40 °C
• IP Rating: IP20
• Product Height (mm): 49
• Product Length (mm): 46.5
• Product Width (mm): 16
• Product Weight (g): 50
• Main Circuit Capacity - Flexible Conductor (mm2): 6–35
• Main Circuit Capacity - Rigid Conductor (mm2): 6–50
• Main Circuit Capacity - Rigid Conductor (AWG): 10–0
• Circuit Application: Power & Signal
• Certifications and Standards: CE; RoHS; UR (UL Recognized); CSA; GOST R; IEC60529; IEC60947-1
