Te Connectivity 1SNA105004R2200 Screw clamp terminal block 41 A (8 mm) 010500422

Product Description

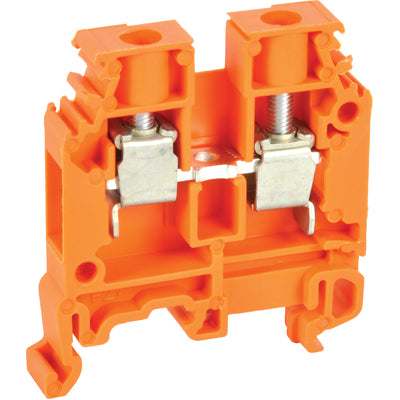

Te Connectivity 1SNA105004R2200 is a 2-position Entrelec SNA series screw clamp feed-through terminal block for DIN-rail mounting. It features 8 mm spacing, polyamide 6.6 insulation, and screw termination with a tightening torque of 0.8 Nm. Electrical ratings include 41 A (IEC) / 50 A (UL/CSA) and 1000 VAC (IEC) / 600 VAC (UL/CSA); wire capacity covers 0.5 to 10 mm2.

• 2-position feed-through terminal block with 8 mm spacing and screw clamp termination
• Electrical ratings: 41 A (IEC) / 50 A (UL/CSA), 1000 VAC (IEC) / 600 VAC (UL/CSA); dielectric withstand 2000 V, impulse 8000 V
• DIN-rail mounting (G32, TH35-15, TH35-7.5), polyamide 6.6 housing, wire range 0.5–10 mm2, stripping length 12 mm

Product Highlights

2-position DIN-rail screw clamp terminal block; 8 mm spacing; 41 A (IEC) / 50 A (UL); accepts 0.5–10 mm2 wire; polyamide housing; operating range -55 to 110 C; IP20

Product Information

Standard Information

• Brand: TE CONNECTIVITY
• Manufacturer Part Number: 1SNA105004R2200

Technical Specifications

• Brand: Te Connectivity (ENTRELEC)
• Manufacturer Part Number: 1SNA105004R2200
• Alternate Part Number: 010500422
• Product Type: Screw clamp terminal block
• Block Function: Feed-through
• Series: SNA
• Number of Positions: 2
• Number of Levels: 1
• Number of Poles: 2
• Product Spacing: 8 mm
• Terminal Width: 8 mm
• Mounting Type: DIN rail
• DIN Rail Compatibility: G32 | TH35-15 | TH35-7.5
• Termination Method: Screw terminal
• Current Rating (IEC): 41 A
• Current Rating (UL/CSA): 50 A
• Voltage Rating (IEC): 1000 VAC
• Voltage Rating (UL/CSA): 600 VAC
• Dielectric Withstanding Voltage: 2000 V
• Impulse Withstanding Voltage: 8000 V
• Short-Time Withstanding Current @1s: 720 A
• Wire Size (mm2): 0.5–10 mm2
• Wire Size (AWG): 8-22 AWG
• Wire Stripping Length: 12 mm
• Tightening Torque: 0.8 Nm (7.1 in-lbs)
• Housing Material: Polyamide 6.6
• Operating Temperature Range: -55 to 110 C
• IP Rating: IP20
• Flammability Rating: UL94 V-0
• Product Height: 44.5 mm
• Product Length: 40.5 mm
• Product Width: 8 mm
• Product Weight: 12.8 g
• Circuit Application: Signal
• Category: DIN rail terminal blocks
• RoHS Compliant: Yes
