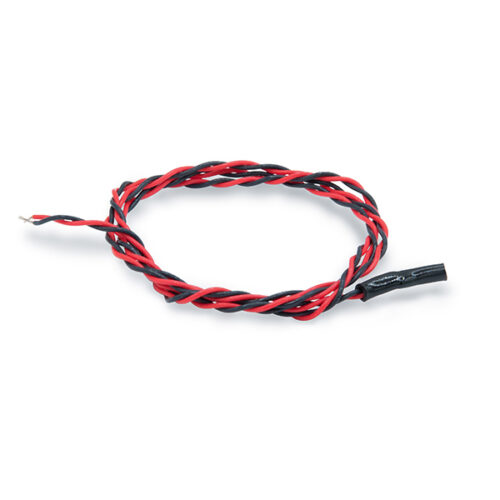

TCS Basys Controls TS2007 Quick-Response Sensor 1000 Ohm RTD

Product Description

The TCS Basys Controls TS2007 is a 1000 ohm RTD sensor designed for rapid response to temperature changes. This sensor features a 24 lead and is encapsulated in a thermo-conductive compound to improve its sensitivity and speed. It is suitable for various applications in temperature control systems, HVAC, and industrial settings.

• Quick-response capabilities enhance temperature monitoring efficiency.
• Compatible with a wide range of temperature control systems.
• Durable design suitable for demanding environments.

Product Highlights

The TS2007 sensor provides consistent accuracy and reliability in temperature measurements.

Product Information

Standard Information

• Brand: TCS Basys Controls
• MPN: TS2007

Technical Specifications

• Single-point sensor accuracy: +/- 0.1% @ 32°F (0°C)
• Temperature coefficient: 0.00385 Ω/Ω/°C
• Reference resistance: 1000Ω @ 32°F (0°C)
• Compliance: DIN IEC 751
• Response time (90%):
• Air @1m/s: 25 seconds
• Air @3m/s: 17 seconds
• Operating temperature: -50 to 375°F (-45.6 to 190.6°C)
• Maximum current: 5 mA; recommended: 1 mA
