TCS Basys Controls TS1009 Duct-Mount Sensor: 1000 Ohm RTD

Product Description

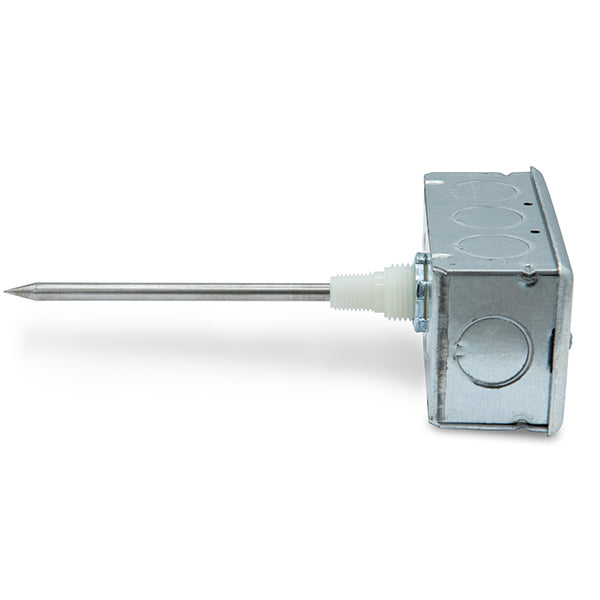

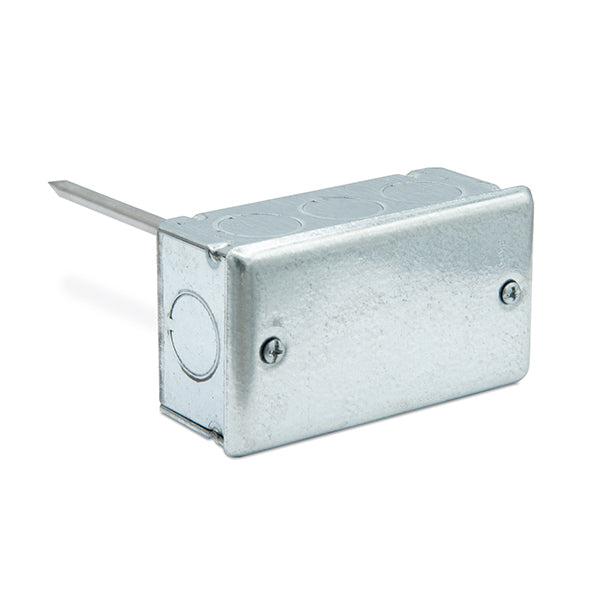

The TCS Basys Controls TS1009 is a duct-mount sensor featuring a four-inch probe. It is housed in a standard two-inch by four-inch enclosure with half-inch knockouts suitable for conduit usage. This sensor can be effectively used alongside four-inch or eight-inch thermowells for liquid applications.

• Designed for installation in ducts.
• Compatible with thermowells for versatile applications.
• Offers precise temperature readings.

Product Highlights

This sensor delivers accurate readings in various applications.

Product Information

Standard Information

• Brand: TCS Basys Controls
• MPN: TS1009

Technical Specifications

• Single-point sensor accuracy: +/- 0.1% at thirty-two degrees Fahrenheit (0 degrees Celsius)
• Temperature coefficient: 0.00385 Ohm/Ohm/degree Celsius
• Reference resistance: 1000 Ohm at thirty-two degrees Fahrenheit (0 degrees Celsius)
• Compliance: DIN IEC 751
• Response time (90%): Air at one meter per second: twenty-five seconds; at three meters per second: seventeen seconds
• Operating temperature: Minus fifty to three hundred seventy-five degrees Fahrenheit (minus forty-five point six to one hundred ninety point six degrees Celsius)
• Maximum current: five milliamperes; recommended one milliampere
