TCS Basys Controls TS1006 Continuous Averaging Sensor – 24'

Product Description

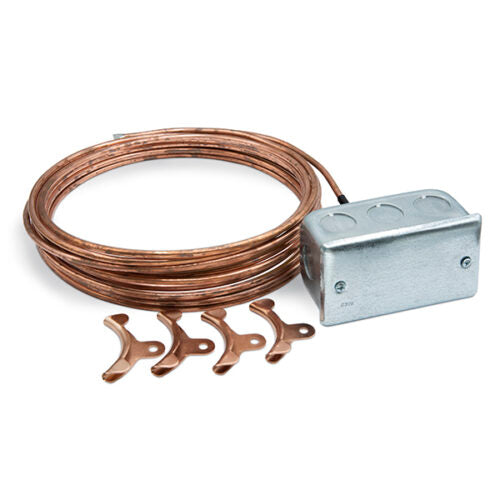

TCS Basys Controls TS1006 is a continuous averaging temperature sensor designed for reliable performance in HVAC applications. This sensor features a length of twenty-four feet and operates on a resistance of 1000 ohms. It is designed to be mounted using the included capillary tube-mounting clips, enabling accurate placement across duct airflows. This setup allows for effective temperature averaging.

• Capable of handling a wide temperature range from negative fifty degrees to three hundred seventy-five degrees Fahrenheit.
• Response times of twenty-five seconds at one meter per second airflow and seventeen seconds at three meters per second airflow.
• DIN IEC 751 compliant for standardization and quality assurance.

Product Highlights

Ideal for HVAC settings, the sensor provides accurate temperature readings while easy to install and configure.

Product Information

Standard Information

• Brand: TCS Basys Controls
• MPN: TS1006

Technical Specifications

• Averaging sensor accuracy: +/- 1°F at 70°F (21.11°C)
• Temperature coefficient: 0.00385 Ω/Ω/°C
• Reference resistance: 1000Ω at 32°F (0°C)
• Compliance: DIN IEC 751
• Response time (90%): Air @1m/s: 25 seconds; Air @3m/s: 17 seconds
• Operating temperature: -50 to 375°F (-45.6 to 190.6°C)
• Maximum current: 5 mA; recommended: 1 mA
