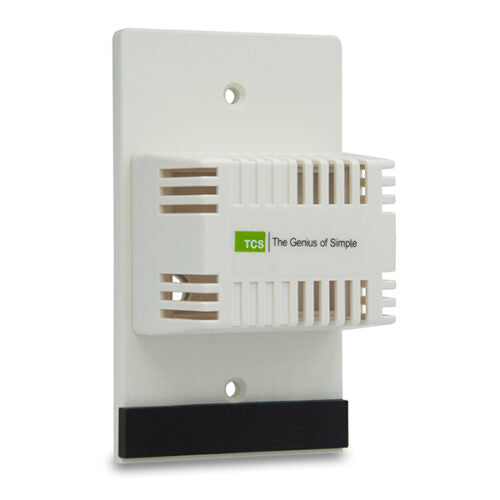

TCS Basys Controls TS1000 1000 Ohm RTD Sensor – Wall Mount

Product Description

The TCS Basys Controls TS1000 is a wall-mounted temperature sensor, also known as a Resistance Temperature Detector (RTD). This sensor is designed for accurate temperature measurement in a range of applications. It is suitable for HVAC systems, industrial processes, and environmental monitoring.

• Single-point sensor accuracy: ±0.1% at thirty-two degrees Fahrenheit (zero degrees Celsius)
• Operating temperature range: Minus fifty degrees Fahrenheit to three hundred seventy-five degrees Fahrenheit (minus forty-five point six degrees Celsius to one hundred ninety point six degrees Celsius)
• Response time: Twenty-five seconds at one meter per second air flow

Product Highlights

This RTD sensor features reliability and precision, making it an ideal choice for professionals needing temperature control.

Product Information

Standard Information

• Brand: TCS Basys Controls
• MPN: TS1000

Technical Specifications

• Single-point sensor accuracy: ±0.1% at 32°F (0°C)
• Temperature coefficient: 0.00385 Ω/Ω/°C
• Reference resistance: 1000 Ω at 32°F (0°C)
• Compliance: DIN IEC 751
• Response time (90%): Air at 1 m/s: 25 seconds; Air at 3 m/s: 17 seconds
• Operating temperature: -50 to 375°F (-45.6 to 190.6°C)
• Maximum current: 5 mA; recommended: 1 mA
