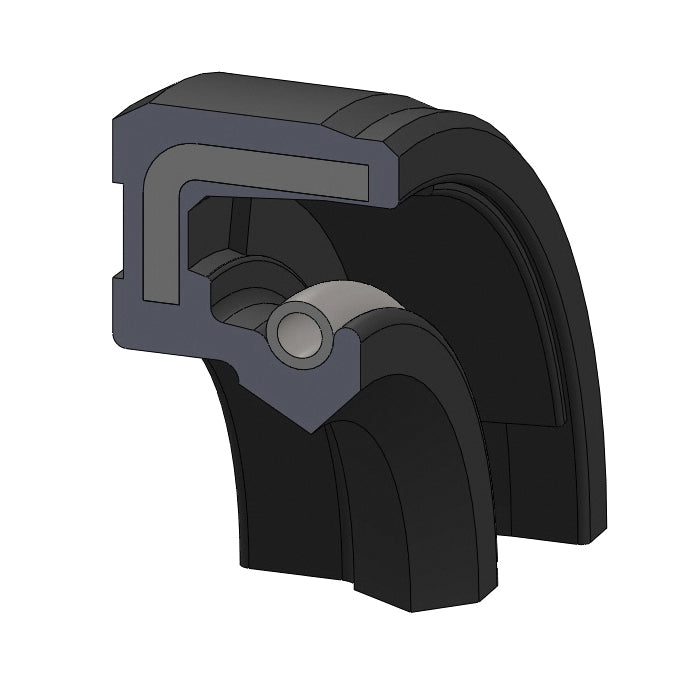

TCM 25X52X7SC Single Lip With Spring Shaft Seal

Product Description

The TCM 25X52X7SC is a single lip with spring shaft seal designed for general purpose use. It features a shaft diameter of twenty-five millimeters and a housing bore of fifty-two millimeters. This seal is made from nitrile material, providing durability and resistance to various fluids. It is suitable for applications requiring a temperature range from negative forty degrees Fahrenheit to two hundred fifty degrees Fahrenheit.

• Seal Design: Molded Design
• Pressure: 3 psi
• Surface Speed: 3,600 ft/min

Product Highlights

This product is ideal for preventing leaks in rotating machinery. It is compatible with a range of lubricants and provides reliable sealing performance under pressure.

Product Information

Standard Information

• Brand: TCM
• Part Number: 101833917

Technical Specifications

• Shaft Diameter: 25 mm
• Housing Bore Diameter: 52 mm
• Width: 7 mm
• Lip Type: Single Lip w/Spring
• Lip Material: Nitrile
• Spring Material: Carbon Steel Garter
• Case Construction: Rubber Covered OD Steel Case
• Temperature Range [Min]: -40 °F
• Temperature Range [Max]: 250 °F
• Misalignment & Runout: 0.015@1000, 0.010@3600
