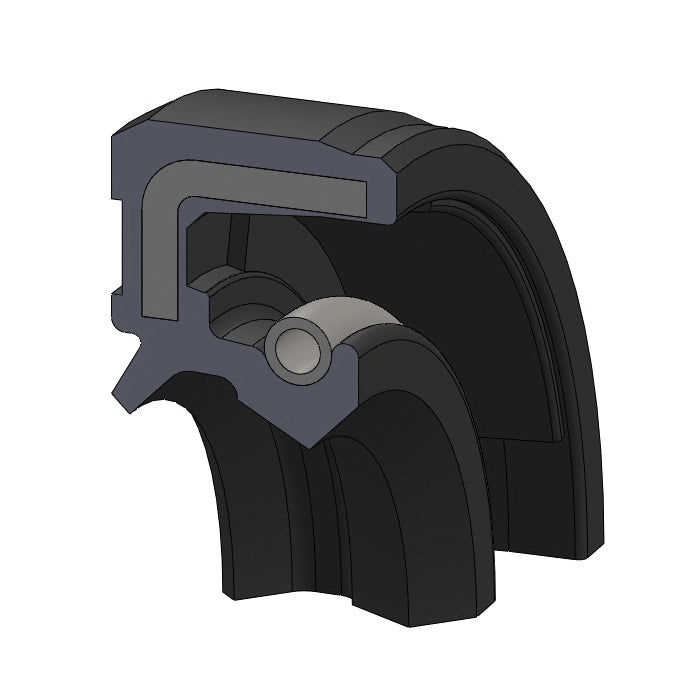

TCM 20X35X7TC Dual Lip with One Spring Shaft Seal

Product Description

The TCM 20X35X7TC is a dual lip shaft seal designed for effective sealing in various applications. This seal features a nitrile lip material that ensures durability and longevity. It is suitable for general purpose use and can handle up to 250 °F, making it ideal for a wide range of environments.

• Temperature Range: -40 °F to 250 °F
• Shaft Diameter: 20 mm, Housing Bore Diameter: 35 mm
• Pressure Rating: 3 psi

Product Highlights

This shaft seal is designed to work well in rotating applications, providing reliable sealing to prevent leakage.

Product Information

Standard Information

• Brand: TCM
• MPN: 20X35X7TC

Technical Specifications

• Shaft Diameter: 20 mm
• Housing Bore Diameter: 35 mm
• Width: 7 mm
• Temperature Range [Max]: 250 °F
• Temperature Range [Min]: -40 °F
• Pressure: 3 psi
• Surface Speed [Nom]: 3,600 ft/min
• Spring Material: Carbon Steel Garter
• Lip Type: Dual Lip w/One Spring
• Case Construction: Rubber Covered OD Steel Case
• Seal Application: General Purpose
• Inch/Metric: Metric
