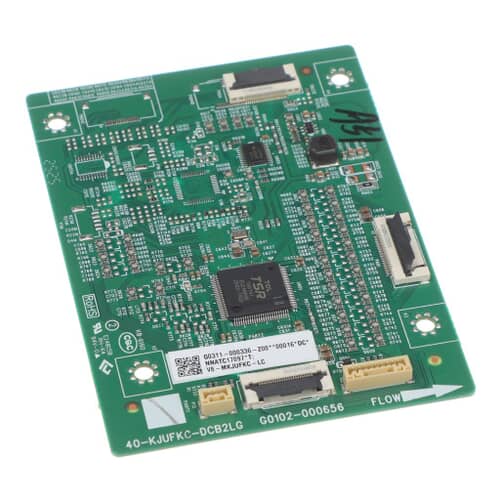

Tcl G0311-000336-Z00 Driver Board Local Dimming

Product Description

The TCL G0311-000336-Z00 is a local-dimming driver board designed for TCL consumer electronics. This board controls the LED backlight zones in a display panel, managing the dimming signals that allow independent brightness adjustment across different regions of the screen. It serves as a core component in the display assembly, receiving input from the main board and delivering precise drive signals to the LED backlight arrays. Replacement of this board is typically performed by experienced electronics technicians or display repair specialists when backlight failure, uneven dimming, or related display faults are diagnosed.

This driver board is intended for use in TCL televisions and display units that utilize a local-dimming LED backlight architecture. It is suited for service and repair scenarios where the original board has failed due to component degradation or electrical fault. Installers should verify the part number against the original board label before ordering to confirm fitment within the specific display assembly.

Key Features

• Local-dimming functionality for independent LED backlight zone control
• Direct OEM replacement board for compatible TCL display assemblies
• Designed to interface with the main board and LED backlight arrays
• Part number G0311-000336-Z00 printed on board for verification

Compatibility

Designed as an OEM-style replacement driver board for compatible TCL consumer electronics display assemblies utilizing local-dimming LED backlight technology. Verify the part number on the original board before installation to confirm compatibility.

Installation Notes

Installation should be performed by a qualified electronics technician. Disconnect the television from AC power and allow capacitors to discharge fully before opening the display enclosure or handling internal boards. Handle the board by its edges to avoid electrostatic discharge damage to components. Follow all applicable safety procedures when working inside display assemblies, as high-voltage backlight circuits may be present.

Technical Specifications

• Board Type: Local Dimming Driver Board

Standard Information

• Brand: TCL
• Manufacturer Part Number: G0311-000336-Z00
