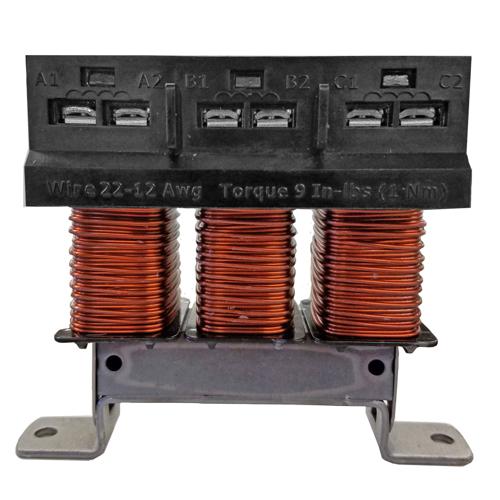

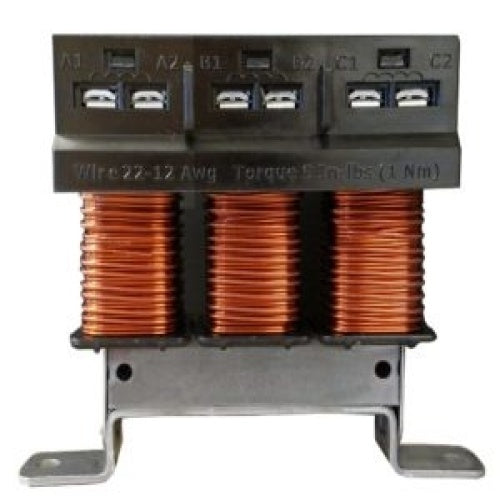

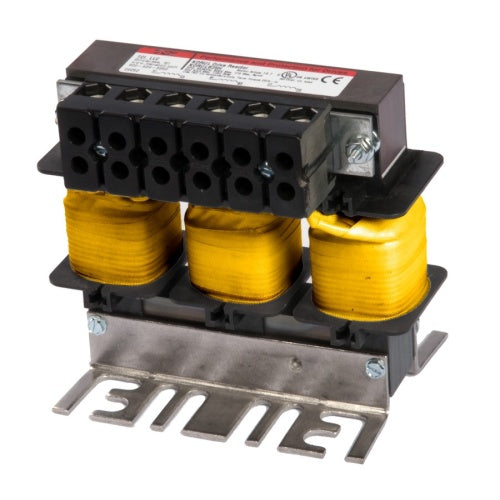

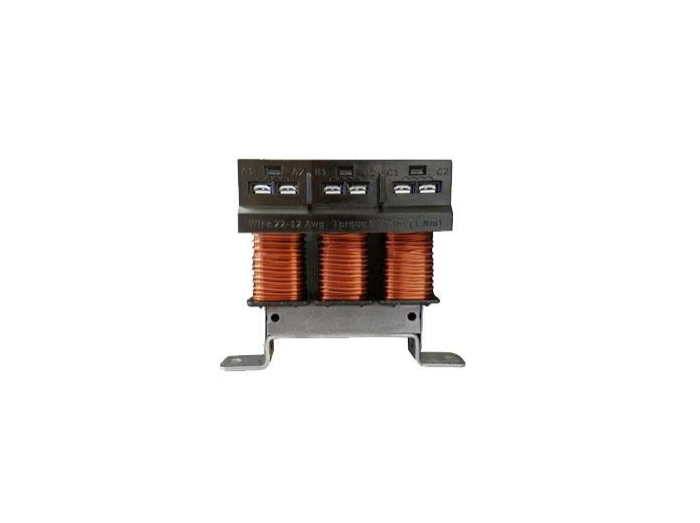

Tci KDRMA8L1 KDR Reactor 480V 3 HP 3% Impedance

Product Description

The TCI KDRMA8L1 KDR reactor operates at 480V with 3 HP and 3% impedance. It helps meet IEEE 519-2014 requirements and is specifically designed for VFD applications. This reactor reduces line notching and inverter overcurrent, while also improving the true power factor of your system.

• Helps to meet IEEE 519-2014 requirements
• Available in ultra low, low and high impedence
• Strong durable design specifically for VFD applications

Product Highlights

The TCI KDRMA8L1 reactor improves power quality, protects devices, and decreases harmonics in your system.

Product Information

Standard Information

• Brand: TCI
• Manufacturer Part Number: KDRMA8L1
• Country of Origin: US

Technical Specifications

• Rated Voltage: 480 V
• Horsepower: 3 HP
• Impedance Rating: 3%
• DIN Rail Option: None
• UL: UL Listed
• Enclosure Type: Open
• Watts Loss: 30.6 W
• Phase: 3
• Hertz (Hz): 50/60
• Temp Rise: 135
• Model: KDRMA8L1DR
• Country of Origin: United States
• Height: 3.63 in
• Width: 4.45 in
• Depth: 1.78 in
• Brand: TCI
• Component Type: Line Reactor
• System Voltage: AC 480V
• Tci Product Series: KDR Line Reactor
• Manufacturer Part Number: KDRMA8L1
• Manufacturer: TCI
• Product Series: KDR
• Description: Reactor, 480V, 5.0A, 3-PH, Open, 3pct., UL Listed
• Nominal Voltage: 480 V
• Voltage: 480 V
• Current Rating: 5 A
• Inductance: 0.0046 H
• Approvals: UL
• Percentage Impedance: 3%
• Enclosure Rating: IP 00
• Heat Loss: 30.6 W
• Rated Amps: 5 A
• VFD Filter Voltage: 480 Volt
• VFD Filter Enclosure: Open
• VFD Filter Impedance: 3%
• VFD Filter Horsepower: 3 HP
• VFD Filter Line: (KDR) Reactor
• VFD Filter Protected Side: Load Side (Out)
• VFD Filter Voltage Phase: Three Phase
• VFD Filter Motor Amps: 4.8 Motor Amp
