Product Description

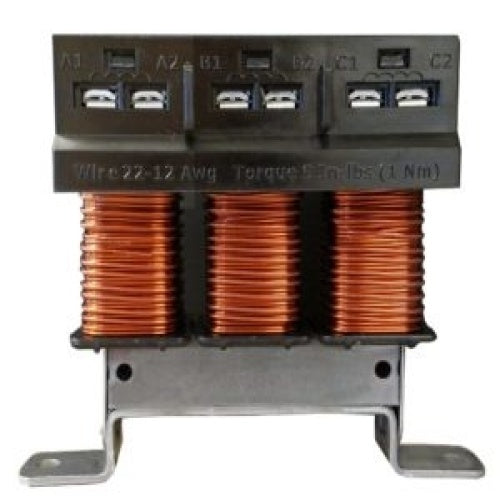

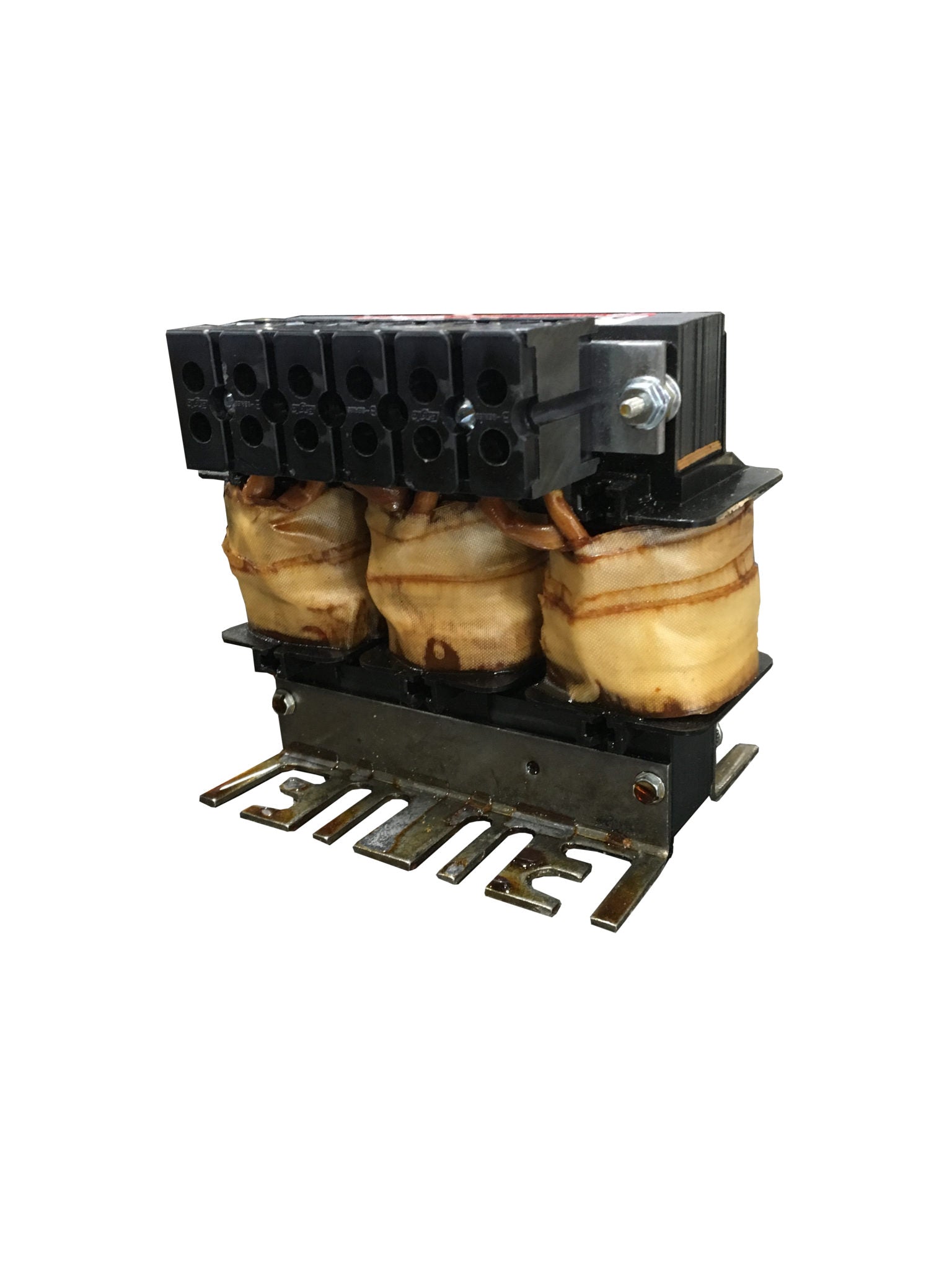

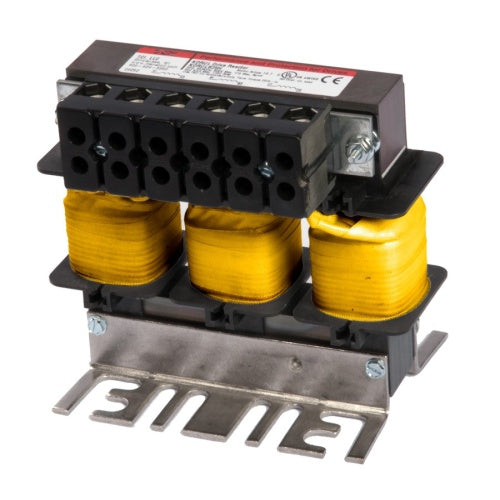

The TCI KDRB23L drive reactor, from the KDR series, is low impedance optimized. It operates at 208/240 VAC, 25 A, and 7-1/2 hp. This 3-phase reactor comes in an open enclosure and is designed for surface mounting. It provides impedance against harmonics and high frequencies that can cause equipment failure.
- Reduces cross-talk
- Protects components from damage
- Improves voltage phase to phase imbalance
Product Highlights
The KDR line reactor extends motor life, protects equipment, increases drive uptime, improves power factor, and reduces motor heating and noise.
Product Information
Standard Information
-
Brand: TCI
-
Manufacturer Part Number: KDRB23L
-
Country of Origin: US
Technical Specifications
-
Amperage Rating: 25 A
-
Application: Oil and Gas Pumps, Irrigation Fields, Farms, Wastewater Treatment Plants, HVAC, Pulp and Paper, Steel Industry, Machining and Extruders
-
Depth: 4 in
-
Enclosure: Open
-
Height: 5 in
-
Horsepower: 7-1/2 hp
-
Manufacturer Part Number: KDRB23L
-
Mounting Type: Surface
-
Phase: 3
-
Series: KDR
-
Standards/Approvals: RoHS Compliant|UL Listed|cUL Listed|CE Certified|IEEE 519-2014
-
Type: Low Impedance Optimized
-
Voltage Rating: 208 VAC
-
Width: 6 in
-
Hertz (Hz): 50/60
-
Impedance %: 3%
-
Impedance Value: 3% Low Z
-
Max Amps: 25
-
Model: Input Reactor
-
Product Line: KDR
-
Rated Amps: 24.2
-
Rated Voltage: 208/240
-
Temp Rise: 135
-
Term Type: TB
-
Thermal Switch: No
-
UL: UL Listed
-
Watts Loss: 48
-
Amp Rating: 25 Amp
-
Impedance: 3% Impedance
-
All - Voltage: 208/240VAC
-
kVAR: 0
-
RoHS Indicator: Compliant
-
Nominal Voltage: 240 V
-
Enclosed: No
-
Current Rating: 24.2 A
-
Terminals: Terminal Block
-
Mounting: Surface
-
Approvals: cURus, UR
-
VFD Filter Enclosure: Open
-
VFD Filter Includes Heater: No Heater
-
VFD Filter Horsepower: 7.5 HP
-
VFD Filter Voltage: 208 Volt
-
VFD Filter Impedance: 3%
-
VFD Filter Line: (KDR) Reactor
-
VFD Filter Protected Side: Line Side (In)
-
VFD Filter Voltage Phase: Three Phase
-
VFD Filter Motor Amps: 24.2 Motor Amp
-
VFD Filter Watts Loss: 48 Watts
-
Component Type: Line Reactor
-
Enclosure Option: Open
-
Operating Current: 25A
-
System Voltage: AC 208V
-
Tci Product Series: KDR Line Reactor
