Product Description

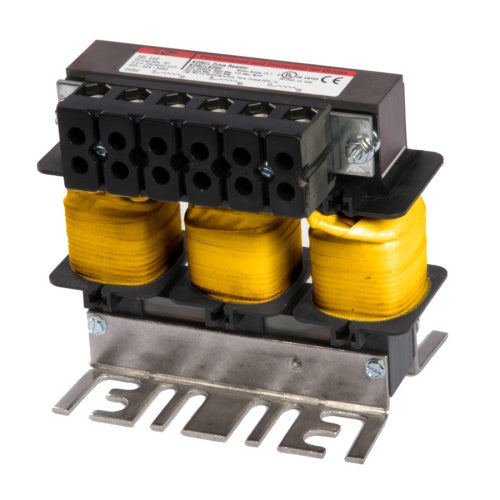

The TCI KDRB22L is a KDR series drive reactor optimized with low impedance. It operates at 208 VAC with 19 A, and 5 hp. The KDR line reactor offers impedance against harmonics and high frequencies that can cause equipment failure. It protects sensitive devices from electrical distortion.
- Reduces cross-talk
- Protects components from damage
- Improves voltage phase to phase imbalance
Product Highlights
This reactor extends motor life, protects equipment, increases drive uptime, improves power factor, and reduces motor heating and noise.
Product Information
Standard Information
-
Brand: TCI
-
Manufacturer Part Number: KDRB22L
-
Country of Origin: US
Technical Specifications
-
Amperage Rating: 19 A
-
Application: Oil and Gas Pumps, Irrigation Fields, Farms, Wastewater Treatment Plants, HVAC, Pulp and Paper, Steel Industry, Machining and Extruders
-
Depth: 4 in
-
Enclosure: Open
-
Height: 5 in
-
Horsepower: 5 hp
-
Manufacturer Part Number: KDRB22L
-
Mounting Type: Surface
-
Phase: 3
-
Series: KDR
-
Standards/Approvals: RoHS Compliant|UL Listed|cUL Listed|CE Certified|IEEE 519-2014
-
Type: Low Impedance Optimized
-
Voltage Rating: 208 VAC
-
Width: 6 in
-
Country of Origin: US
-
DIN Rail Option: None
-
Heavy Duty Option: No
-
Hertz (Hz): 50/60
-
Impedance %: 3%
-
Impedance Value: 3% Low Z
-
Max Amps: 19
-
Model: Input Reactor
-
Mounting Depth: 4
-
Product Line: KDR
-
Rated Amps: 16.7
-
Rated Voltage: 208/240
-
Temp Rise: 135
-
Term Type: TB
-
Thermal Switch: No
-
UL: UL Listed
-
Watts Loss: 39
-
Impedance: 3% Impedance
-
All - Voltage: 208/240VAC
-
Alternate Part Number: KDR Series
-
RoHS Indicator: Compliant
-
Component Type: Line Reactor
-
Enclosure Option: Open
-
Operating Current: 19A
-
System Voltage: AC 208V
-
Tci Product Series: KDR Line Reactor
-
Manufacturer: TCI
-
Product Series: KDR
-
Family Series: TCI Line Reactors, KDR Series
-
Description: REACTOR 240V 5HP LOW-Z
-
Nominal Voltage: 240 V
-
Voltage: 240 V
-
Enclosed: No
-
Current Rating: 16.7 A
-
Terminals: Terminal Block
-
Mounting: Surface
-
Approvals: cURus, UR
-
VFD Filter Horsepower: 5 HP
-
VFD Filter Enclosure: Open
-
VFD Filter Includes Heater: No Heater
-
VFD Filter Voltage: 208 Volt
-
VFD Filter Impedance: 3%
-
VFD Filter Line: (KDR) Reactor
-
VFD Filter Protected Side: Line Side (In)
-
VFD Filter Voltage Phase: Three Phase
-
VFD Filter Motor Amps: 16.7 Motor Amp
-
VFD Filter Watts Loss: 38 Watts
