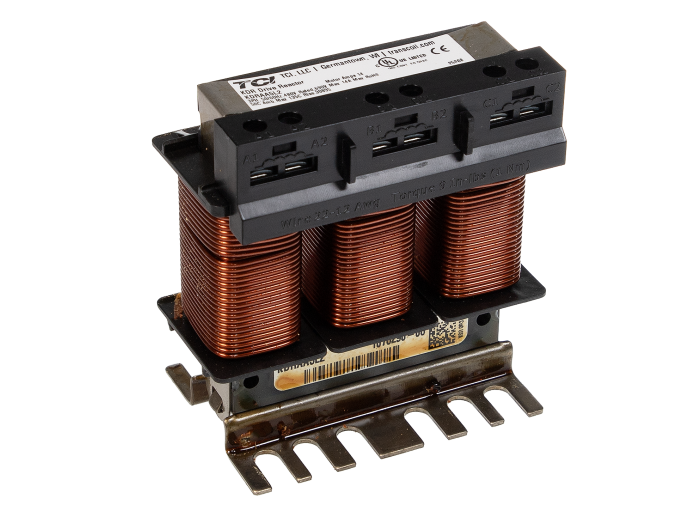

Tci KDRAA5L2 KDR 480V 10 HP 3% Impedance

Product Description

The TCI KDRAA5L2 KDR series line reactor offers optimal protection for drives and applications. With 3% impedance, it mitigates harmonics and high frequencies that can cause tripping and equipment failure. It protects variable frequency drives and sensitive devices from electrical distortion, extends motor life, and improves power factor.

• Reduces line notching
• Reduces inverter overcurrent and overvoltage
• Improves True Power Factor

Product Highlights

The TCI KDRAA5L2 line reactor protects equipment, increases drive uptime, and reduces motor heating and noise.

Product Information

Standard Information

• Brand: TCI
• Manufacturer Part Number: KDRAA5L2
• Country of Origin: US

Technical Specifications

• Rated Voltage: 480 V
• Horsepower (HP): 10
• Impedance Value: 3% Low Z
• DIN Rail Option: None
• UL: UL Listed
• Enclosure Type: Open
• Watts Loss: 77.7
• Phase: 3
• Hertz (Hz): 50/60
• Temp Rise: 135
• Model: KDRAA5L2
• Country of Origin: US
• Height: 4.44 in
• Width: 4.25 in
• Depth: 2.64 in
• Manufacturer Part Number: KDRAA5L2
• Manufacturer: TCI
• Product Series: KDR
• Family Series: TCI Line Reactors, KDR Series
• Description: KDR, 480V, 10 HP, 14 Motor Amps, 14 Max Amps, Narrow Foot, 3 Phase, Open, Line Inductor, 3pct. Impedance.
• Horsepower: 10 hp
• Nominal Voltage: 480 V
• Voltage: 480 V
• Enclosed: No
• Current Rating: 14 A
• Mounting: Surface
• Approvals: UL
• Amp Rating: 14 Amp
• Impedance: 3% Impedance
• Series: KDR Series
• All - Voltage: 460/480VAC
• Alternate Part Number: KDR Series
• Max Amps: 14
• Short Term Overload Rating: Tolerate 200% rated I for a maximum of 3 minutes
• RoHS Indicator: Compliant
• Percentage Impedance: 3%
• Enclosure Rating: IP 00
• Heat Loss: 78 W
• Rated Amps: 14 A
