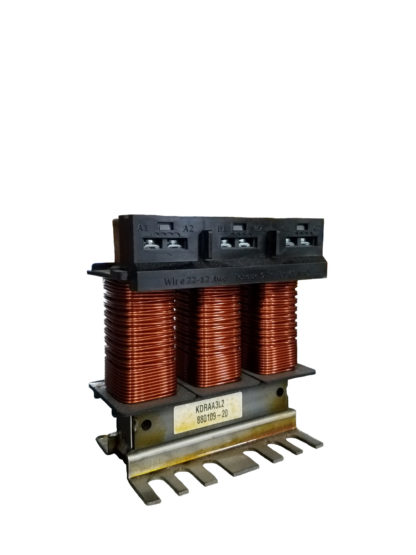

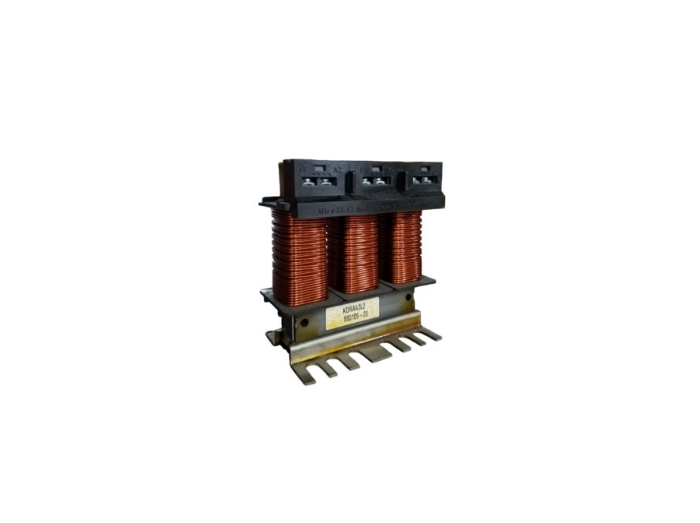

Tci KDRAA3L2 KDR, 480V, 5 HP / 5 1/2 HP, 8.2 Motor Amps

Product Description

The TCI KDRAA3L2 is a KDR series line reactor designed for improving power quality. It is rated for 480V, 5 HP / 5 1/2 HP, and 8.2 Motor Amps. TCI reactors protect devices and decrease harmonics within the system. It protects variable frequency drives and other sensitive devices from electrical distortion on the line.

• Reduces line notching
• Reduces inverter overcurrent and overvoltage
• Improves true power factor

Product Highlights

The TCI KDRAA3L2 line reactor extends motor life, protects equipment, increases drive uptime, improves power factor, and reduces motor heating and noise.

Product Information

Standard Information

• Brand: TCI
• Manufacturer Part Number: KDRAA3L2
• Country of Origin: US

Technical Specifications

• Rated Voltage: 480 V
• Horsepower (HP): 5 hp
• Impedance Value: 3% Low Z
• DIN Rail Option: None
• UL: UL Listed
• Enclosure Type: Open
• Watts Loss: 45
• Phase: 3
• Hertz (Hz): 50/60
• Temp Rise: 135
• Model: KDRAA3L2
• Country of Origin: US
• Percentage Impedance: 3%
• Enclosure Rating: IP 00
• Heat Loss: 48.8 W
• Horsepower Rating: 5.5 HP
• Rated Amps: 8.2 A
• Height: 4.44 in
• Width: 4.25 in
• Depth: 2.64 in
• Amp Rating: 8 Amp
• Impedance: 5% Impedance
• Series: KDR Series
• kVAR: 0
• Max Amps: 8.2
• Short Term Overload Rating: Tolerate 200% rated I for a maximum of 3 minutes
• RoHS Indicator: Compliant
• Nominal Voltage: 480 V
• Voltage: 480 V
• Enclosed: No
• Current Rating: 8.2 A
• Inductance: 0.0029 H
• Net Weight: 3.34 lbs
• Gross Weight: 3.73 lbs
• Manufacturer Part Number: KDRAA3L2
• Manufacturer: Trans-Coil
• Product Series: KDR
• Family Series: TCI Line Reactors, KDR Series
• Description: KDR, 480V, 5 HP / 5 1/2 HP, 8.20 Motor Amps, 8.2 Max Amps, Narrow Foot, 3 Phase, Open, Line Inductor,
• Catalog #: KDRAA3L2
• Echo Electric Part #: 219074
