TBWOODSTB8S118 TB-8S118 Sure-flex Sleeve Coupling Flange

Product Description

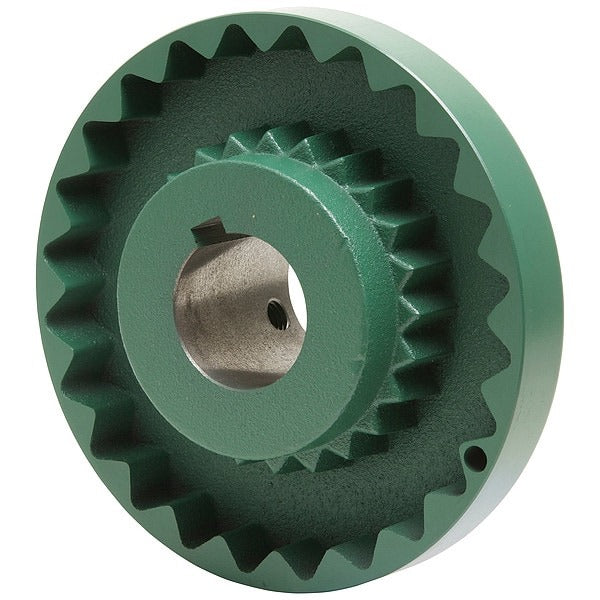

The TBWOODSTB8S118 TB-8S118 is a Sure-Flex sleeve coupling flange hub designed for use in flexible coupling assemblies on rotating equipment. Rated for coupling size 8, this flange hub accepts a round keyed bore of 1.125 inches and is machined from cast iron for durability under load. It handles a maximum torque of 1,475 inch-pounds and is rated to a maximum speed of 4,500 RPM. The outside diameter measures 5 29/64 inches, with a hub diameter of 3.25 inches and a hub body length of 0.75 inches. Licensed mechanical contractors and millwrights install this component when assembling or replacing Sure-Flex coupling systems on industrial and commercial rotating equipment.

This flange hub is suited for use on compressors, conveyors, motors, and pumps in commercial and light industrial installations. It is a flange hub style, meaning it mates with a Sure-Flex sleeve element rather than a jaw or disc coupling insert. The bore tolerance is +0.0005 inches to +0.0015 inches, allowing for precise shaft fitment. This style of coupling hub is commonly installed where flexible torque transmission and misalignment accommodation are required between a driver and driven shaft.

Key Features

• Coupling size 8 flange hub style for Sure-Flex sleeve coupling systems
• Round keyed bore at 1.125 inches diameter with tight bore tolerance (+0.0005 to +0.0015 inches)
• Maximum torque rating of 1,475 inch-pounds
• Maximum speed rating of 4,500 RPM
• Cast iron hub material for strength and wear resistance
• Suitable for compressors, conveyors, motors, and pumps

Compatibility

Designed as an OEM-style replacement flange hub for Sure-Flex size 8 sleeve coupling assemblies used on rotating equipment with a 1.125-inch round keyed shaft.

Installation Notes

Installation of this coupling flange hub should be performed by a qualified mechanic or millwright. De-energize and lock out the motor and associated equipment before disassembly of any coupling components. Ensure the mating shaft is clean, properly sized, and free of burrs before pressing or fitting the hub. Refer to applicable OSHA lockout/tagout procedures and the equipment manufacturer's alignment specifications before returning the drive to service.

Technical Specifications

• Coupling Size: 8
• Hub Type: Flange Hub
• Bore Diameter: 1.125 inches
• Bore Type: Round Keyed
• Bore Tolerance: +0.0005 inches / +0.0015 inches
• Maximum Torque: 1,475 inch-pounds
• Maximum Speed: 4,500 RPM
• Outside Diameter: 5 29/64 inches
• Hub Diameter: 3.25 inches
• Hub Body Length: 0.75 inches
• Length Through Bore: 2 3/32 inches
• Hub Material: Cast Iron
• Application: Compressors, Conveyors, Motors, Pumps
• System of Measurement: Inch
• Country of Origin: Mexico

Standard Information

• Brand: TBWOODSTB8S118
• Manufacturer Part Number: TB-8S118
