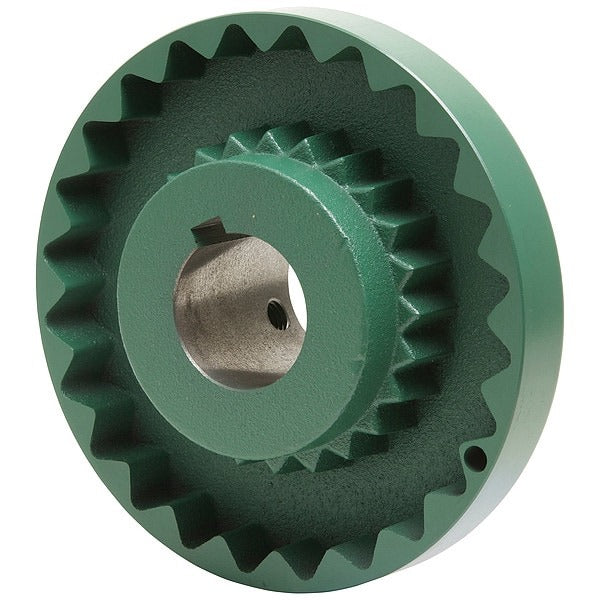

TBWOODSTB6S114 TB-6S114 Sleeve Coupling Flange Size 6

Product Description

The TBWOODSTB6S114 TB-6S114 is a Sure-Flex sleeve coupling flange designed for flexible shaft coupling assemblies in rotating equipment. This is a Size 6 spacer hub flange with a 1.25-inch round keyed bore and a hub diameter of 2.5 inches. It is machined from cast iron and rated for a maximum speed of 6,000 RPM and a maximum torque of 585 inch-pounds. The outside diameter measures 4 inches and the length through bore is 1.625 inches. Licensed HVAC technicians, pump mechanics, and industrial equipment installers work with this component when assembling or replacing flexible couplings on motors, pumps, compressors, and conveyors.

This sleeve coupling flange is suited for use across a range of industrial and commercial drive applications. Typical installations include motor-to-pump connections, compressor drive trains, and conveyor shaft assemblies where a flexible Sure-Flex style coupling is specified. The round keyed bore accepts a standard keyed shaft at 1.25 inches, making it a direct-fit replacement or new-installation component for Size 6 Sure-Flex coupling systems. It is not designed for bushing-style bore modifications. Applications include compressors, conveyors, motors, and pumps.

Key Features

• Size 6 spacer hub configuration for Sure-Flex sleeve coupling assemblies
• 1.25-inch round keyed bore with bore tolerance of plus 0.0005 inches to plus 0.0015 inches
• Maximum rated speed of 6,000 RPM
• Maximum torque rating of 585 inch-pounds
• Cast iron hub material for durability in industrial drive applications
• 4-inch outside diameter with 2.5-inch hub diameter

Compatibility

Designed as a Size 6 Sure-Flex sleeve coupling flange for use in compressor, conveyor, motor, and pump drive applications requiring a 1.25-inch round keyed bore and inch-measurement system components.

Installation Notes

Installation should be performed by a qualified mechanic or millwright familiar with flexible shaft coupling assemblies. De-energize and lock out all power to the drive system before removing or installing any coupling components. Ensure the shaft and bore are clean and free of burrs before seating the hub. Verify key and keyway dimensions match before assembly and confirm all coupling elements are properly aligned to avoid premature wear or failure.

Technical Specifications

• Coupling Size: 6
• Hub Type: Spacer Hub
• Bore Diameter: 1.25 inches
• Bore Type: Round Keyed
• Bore Tolerance: plus 0.0005 inches / plus 0.0015 inches
• Outside Diameter: 4 inches
• Hub Diameter: 2.5 inches
• Hub Body Length: 0.53125 inches
• Length Through Bore: 1.625 inches
• Maximum Speed: 6,000 RPM
• Maximum Torque: 585 inch-pounds
• Hub Material: Cast Iron
• System of Measurement: Inch
• Application: Compressors, Conveyors, Motors, Pumps
• Country of Origin: Mexico

Standard Information

• Brand: TBWOODSTB6S114
• Manufacturer Part Number: TB-6S114
