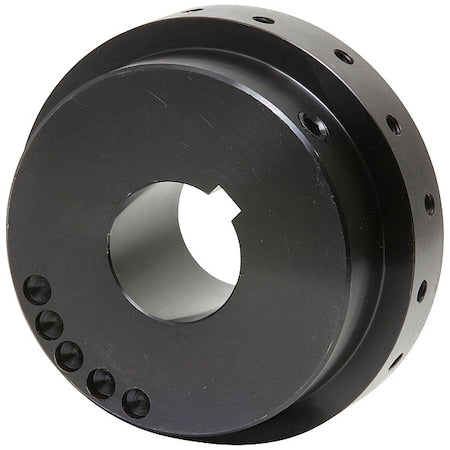

TB Woods WE3H-1 1/8 Bore WE3 BTS Hub

Product Description

The TB Woods WE3H-1 1/8 is a durable WE3 BTS hub designed for various industrial applications. With a bore size of 1 1/8 inches, this hub is constructed from high-quality materials to ensure longevity and reliable performance.

• High-quality construction for durability
• Compatible with a range of WE3 products
• 1 1/8-inch bore size

Product Highlights

The TB Woods WE3H-1 1/8 hub is built to last and is ideal for use with multiple WE3 products. It's made from robust materials to withstand demanding industrial environments.

Product Information

Standard Information

• Item Number: WE3H-1 1/8
• Brand: TB Woods
• Bore Type: Round Keyed
• Manufactured in: Mexico

Technical Specifications

• Bore Diameter: 1 1/8 inches
• Maximum Speed: 7,500 RPM
• Maximum Torque: 365 in-lb
• Keyway Depth: 1/8 inch
• Keyway Width: 1/4 inch
• Hub Diameter: 2.32 inches
• Length through Bore: 1.5 inches
• Material: Low Carbon Steel
• Max Angular Misalignment: 4 degrees
• Weight: 1.02 lbs
