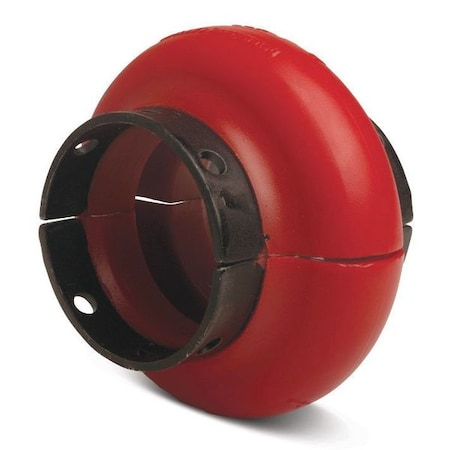

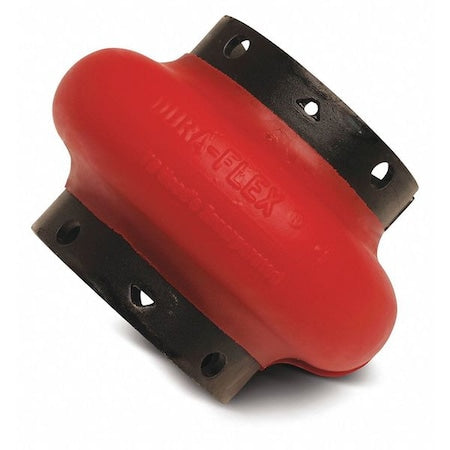

TB WOODS WE30 Dura-Flex Tire Coupling Element 5.8 Horsepower Urethane Replacement WE30

Product Description

The TB Woods Dura-Flex Tire Coupling Element with model number WE30 is designed to provide durable and flexible coupling in a variety of industrial settings, including pumps and motors. Crafted from polyether urethane, this coupling element supports a maximum speed of 5,800 RPM and can handle a horsepower of 5.8 at 100 RPM.

• Supports angular misalignment up to three degrees
• Capable of withstanding torque up to 3,650 inch-pounds
• Designed for high heat resilience from minus 40 to 200 degrees Fahrenheit

Product Highlights

Equipped to balance high torque and speed, the TB Woods WE30 is critical in maintaining the efficacy of machinery in high-demand environments.

Product Information

Standard Information

• Brand: TB Woods
• MPN: WE30

Technical Specifications

• Material: Polyether Urethane/Steel
• Maximum Speed: 5,800 RPM
• Horsepower at 100 RPM: 5.8 hp
• Maximum Torque: 3,650 in-lb
• Operating Temperature: -40 Degrees to 200 Degrees Fahrenheit
• Outside Diameter: 8.41 inches
