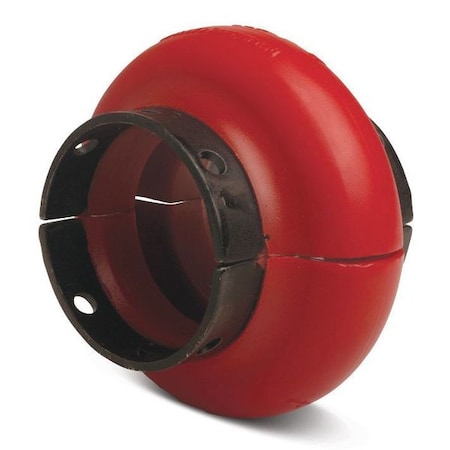

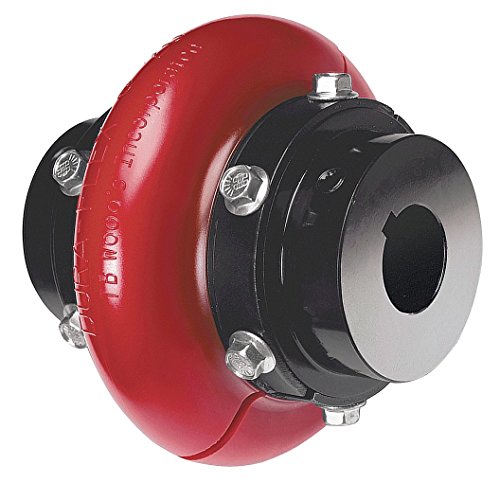

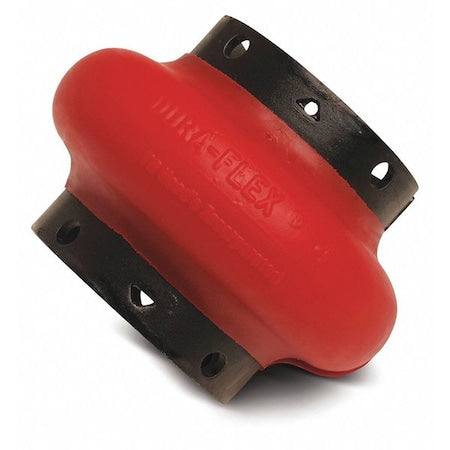

TB Woods WE3 Tire Coupling Element 1 Pack

Product Description

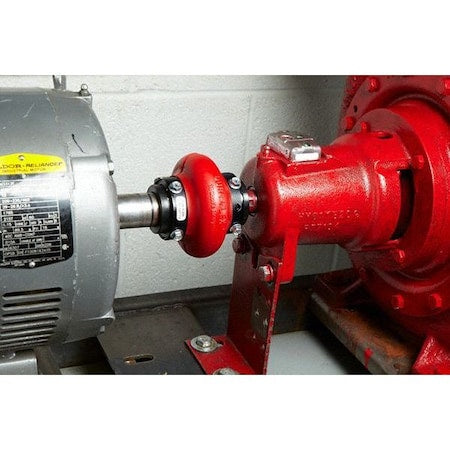

The TB Woods WE3 Tire Coupling Element is designed for industrial applications including pumps, motors, and compressors. This product is characterized by its robust construction featuring polyether urethane and steel components.

• Durable design suitable for harsh environments
• High torque capacity up to 365 inch-pounds
• Operational across a temperature range from -40 degrees to 200 degrees Fahrenheit

Product Highlights

This coupling element offers excellent performance in diverse conditions, thanks to its high RPM limits and versatile temperature range. The WE3 model is particularly noted for its capability to handle substantial misalignment while maintaining operational integrity.

Product Information

Standard Information

• Item: Tire Coupling Element
• Material: Polyether Urethane/Steel

Technical Specifications

• Outside Diameter: 4.24 inches
• Length: 3.06 inches
• Height: 4.24 inches
• Max. RPM: 7500
• Rated Torque: 365 inch-pounds
• HP Rating @ 100 RPM: 0.58 HP
• HP Rating @ 1800 RPM: 10.42 HP
• HP Rating @ 3600 RPM: 19.98 HP
