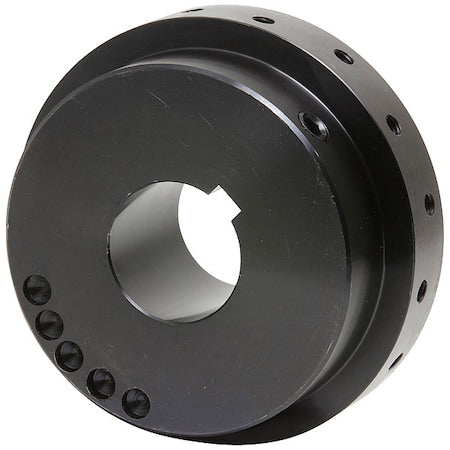

Tb Woods WE2H-11/8 Dura-Flex Tire Coupling Hub, Bore 1-1/8

Product Description

The Tb Woods WE2H-11/8 Dura-Flex Tire Coupling Hub is designed for efficient power transmission in various industrial settings. This hub features a bore size of one and one-eighth inches and can handle maximum speeds of up to seven thousand five hundred RPM. It is suitable for typical industrial applications such as pumps, motors, and compressors.

• Angular misalignment of four degrees
• Maximum torque of one hundred ninety in-lb
• Constructed from low carbon steel for durability

Product Highlights

This tire coupling hub provides reliable performance in systems requiring robust torque and speed management.

Product Information

Standard Information

• Body Style: WE2
• Material of Construction: Low Carbon Steel

Technical Specifications

• Max. RPM: 7,500 RPM
• Bore Diameter: 1 1/8 in
• Rated Torque: 190 in-lb
• Max. Angular Misalignment: 4 Degrees
• Outside Diameter: 1.85 in
• Length through Bore: 0.94 in
• Keyseat Size: 1/4 x 1/8 in
• Screw Thread Size: 3/8 In.-16
