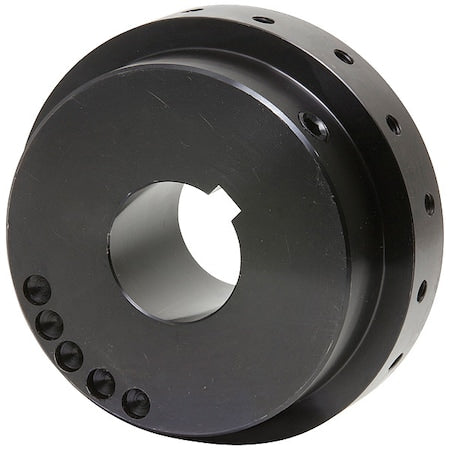

TB Woods WE20H-1 1/8 Bore WE20 BTS Hub

Product Description

The TB Woods WE20H-1 1/8 Bore WE20 BTS Hub is designed for industrial equipment applications. The hub ensures durability and consistent performance in demanding situations.

• 1 1/8 inch bore
• Constructed with low carbon steel
• Designed for maximum durability

Product Highlights

Ideal for industrial equipment, the TB Woods WE20H-1 1/8 hub is highly reliable and built to deliver consistent results. It supports angular misalignment up to 3 degrees and can handle a maximum speed of 6,600 RPM.

Product Information

Standard Information

• Item Number: WE20H-1 1/8
• Brand: TB Woods

Technical Specifications

• Max RPM: 6,600 RPM
• Bore Diameter: 1 1/8 inches
• Hub Diameter: 4.48 inches
• Material: Low carbon steel
• Length through Bore: 2.06 inches
• Angular Misalignment: 3 degrees
• Torque: 2,300 in-lb
• Applications: Pumps, motors, compressors
