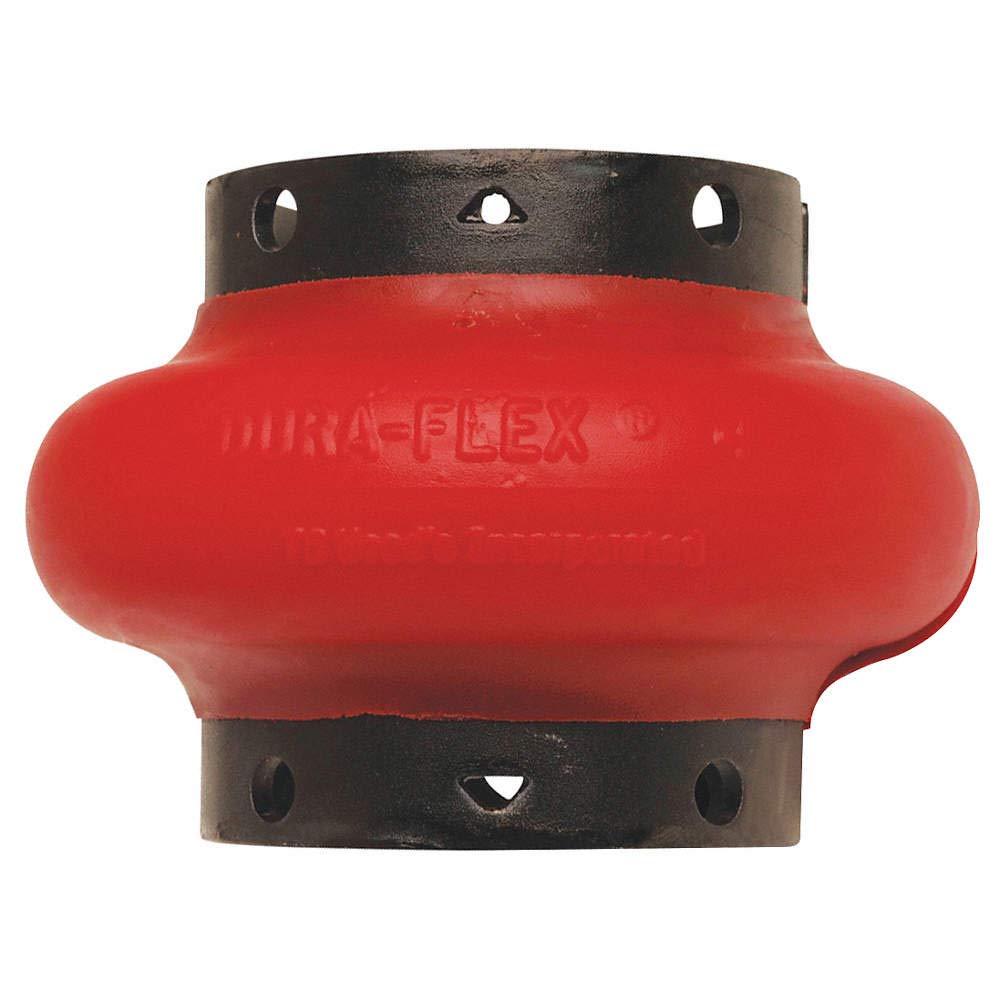

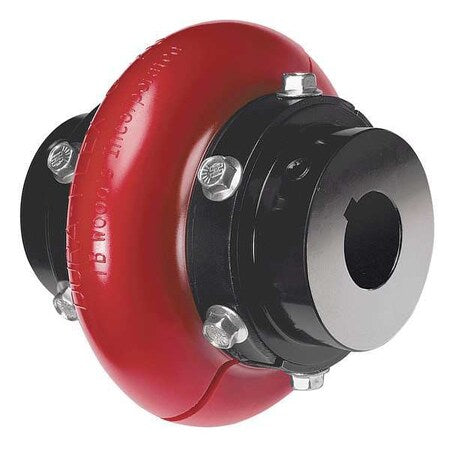

TB Woods WE2 Tire Coupling Element Urethane Replacement WE2

Product Description

The TB Woods WE2 urethane tire coupling element is designed for precision and durability. This product effectively accommodates varying degrees of misalignment in industrial machinery, ensuring a reliable and efficient connection between components.

• Supports angular misalignment up to four degrees.
• Boasts a high maximum speed of 7,500 RPM.
• Constructed from high-quality polyether urethane.

Product Highlights

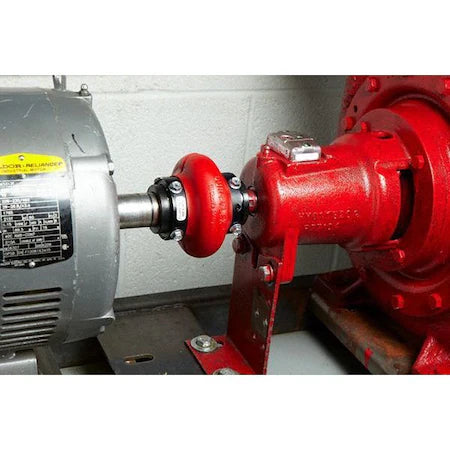

This coupling element is ideal for applications involving blowers, compressors, fans, and generators. It's built to handle substantial torque and speeds, making it a versatile component in a broad range of industrial settings.

Product Information

Standard Information

• Brand: TB Woods
• MPN: WE2

Technical Specifications

• Maximum Torque: 190 in-lb
• Maximum Speed: 7,500 RPM
• Material: Polyether Urethane
• Element Length: 3.78 inches
• Maximum Hub Spacing: 0.25 inches
• Outside Diameter: 3.7 inches
• Operating Temperature: -40 to 200 degrees Fahrenheit
