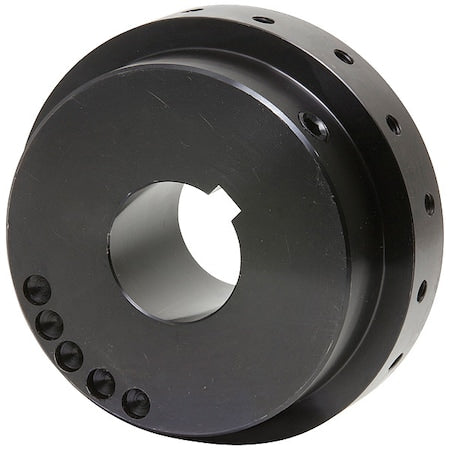

TB Woods WE10H-13/8 Dura-Flex Tire Coupling Hub, Bore 1-3/8

Product Description

TB Woods WE10H-13/8 is a tire coupling hub designed for various industrial applications. This hub features a bore size of one and three eighths inches, making it suitable for connections in pumps, motors, and compressors. The design allows for angular misalignment of up to four degrees, accommodating various installation needs.

• Bore Diameter: 1 3/8 inches
• Maximum RPM: 7,500
• Rated Torque: 1,450 in-lb

Product Highlights

The product is built for efficiency and strong performance in demanding environments. With a maximum speed of 7,500 RPM and low carbon steel construction, it ensures durability and reliability.

Product Information

Standard Information

• Brand: TB Woods
• MPN: WE10H-13/8

Technical Specifications

• Max. RPM: 7,500
• Bore Diameter: 1 3/8 inches
• Angular Misalignment: 4 degrees
• Hub Diameter: 3.65 inches
• Material of Construction: Low Carbon Steel
• Setscrew Location: Over Keyway
• Keyseat Size: 5/16 x 5/32 inches
• Length Through Bore: 1.88 inches
