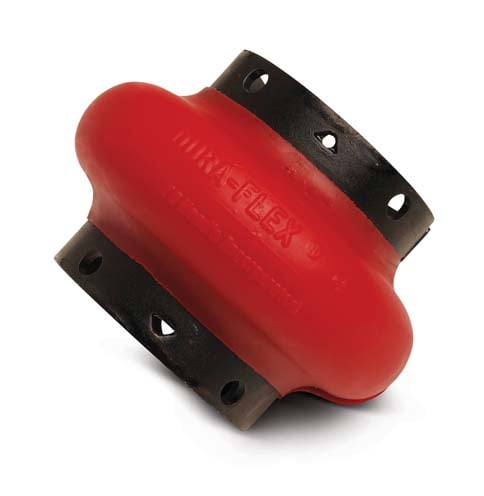

Tb Woods TB-WE3 Flexible Coupling Element Polyether Urethane

Product Description

The TB WOODS TB-WE3 is a standard two-piece flexible coupling element designed for use in the Dura-Flex WE series tire coupling system. Manufactured from polyether urethane, this tire-type element absorbs shock, vibration, and minor misalignment between coupled shafts in rotating drive applications. It carries a torque capacity of 365 inch-pounds and is rated for speeds up to 7,500 RPM. The element handles up to 4 degrees of angular misalignment and up to 1/16 inch of parallel misalignment, making it well suited for drives where shaft alignment is difficult to hold perfectly. Maintenance technicians and millwrights install this element as part of routine coupling maintenance or drive repair.

This element fits Dura-Flex WE series couplings sized to coupling size code 3, with a coupling overall length of 4.32 inches and an outside diameter of 4.24 inches. Distance between shafts is 1.32 inches. The TB-WE3 is appropriate for industrial drive applications including conveyor systems, pumps, fans, and general power transmission equipment where flexible coupling elements are replaced on a scheduled basis or following wear inspection.

Key Features

• Polyether urethane construction resists oil, abrasion, and environmental degradation
• Tire-type element design absorbs shock loads and dampens vibration in the drive train
• Handles up to 4 degrees of angular misalignment and 1/16 inch of parallel misalignment
• 365 inch-pound torque capacity rated at up to 7,500 RPM
• Two-piece construction allows element replacement without moving connected equipment
• Part of the Dura-Flex WE series for consistent OEM-style fitment

Compatibility

Designed for use with TB WOODS Dura-Flex WE series tire couplings at coupling size code 3. Verify coupling size code, outside diameter, and distance between shafts against the existing coupling assembly before ordering.

Installation Notes

Coupling element replacement is typically performed by a millwright or mechanical technician. De-energize and lock out the drive motor fully before removing any coupling components. Inspect shaft hubs for wear or damage before installing the new element. Follow ANSI and applicable local machinery safety standards for rotating equipment service.

Technical Specifications

• Series: Dura-Flex WE
• Coupling Size Code: 3
• Torque Capacity: 365 inch-pounds
• Max RPM: 7,500 RPM
• Horsepower at 100 RPM: 0.58 hp
• Max Angular Misalignment: 4 degrees
• Max Parallel Misalignment: 1/16 inch
• Outside Diameter: 4.24 inches
• Coupling Overall Length: 4.32 inches
• Distance Between Shafts: 1.32 inches
• Element Type: Tire
• Material: Polyether Urethane
• Weight: 0.91 pounds

Standard Information

• Brand: TB WOODS
• Manufacturer Part Number: TB-WE3
