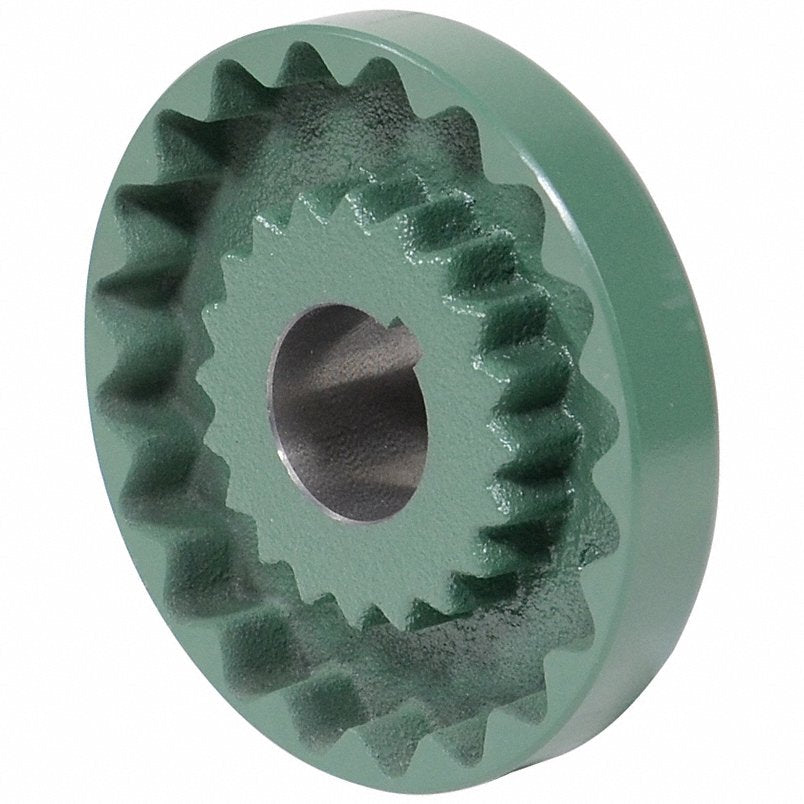

Tb Woods TB-6J118 Sleeve Coupling Flange Cast Iron

Product Description

The TB WOODS TB-6J118 is a finished bore sleeve coupling flange designed for close-coupled shaft connections in rotating equipment. It mounts directly to a keyed shaft with a 1-1/8 inch round keyed bore and bore tolerances of +0.0005 inch to +0.0015 inch. The flange hub is cast iron, rated to 6,000 RPM, and pairs with a matched sleeve insert to complete the coupling assembly. A 4-way flexing action absorbs shock, vibration, misalignment, and end float. Two set screws are included, positioned one over the keyseat and one at 90 degrees, using a 5/16 inch-18 thread. Licensed HVAC and mechanical technicians install this type of coupling in motor-driven applications across commercial and industrial environments.

This coupling flange suits shaft-to-shaft connections in compressors, conveyors, motors, and pumps where angular and parallel misalignment must be accommodated. The 1/4 inch keyway width and 1/8 inch keyway depth conform to standard inch-series keyed shaft dimensions. The flange is part of a coupling size 6 assembly and is intended for use with a compatible mating flange and sleeve insert. It performs reliably in environments where exposure to oils and chemical agents is common, making it well-suited to mechanical rooms and industrial process equipment.

Key Features

• 6,000 RPM maximum speed rating for motor-driven rotating equipment
• 4-way flexing action absorbs shock, vibration, angular misalignment, and parallel misalignment
• Finished round keyed bore at 1-1/8 inch with tight bore tolerance (+0.0005 inch to +0.0015 inch)
• Cast iron flange hub provides durability in industrial service conditions
• Chemical resistant and oil resistant construction
• Includes two set screws (one over keyseat, one at 90 degrees) with 5/16 inch-18 thread

Compatibility

Designed for use in coupling size 6 sleeve coupling assemblies with keyed inch-series shafts. Compatible applications include compressors, conveyors, motors, and pumps requiring angular and parallel misalignment accommodation.

Installation Notes

Installation should be performed by a qualified mechanical or millwright technician. De-energize and lock out all power to the drive system before mounting or removing coupling components, following OSHA lockout/tagout procedures. Verify shaft and keyway dimensions match the bore and keyway specifications before pressing the flange onto the shaft. Do not overtighten set screws beyond the fastener manufacturer specifications for the given thread size, and ensure the mating sleeve insert is in place before returning the equipment to service.
