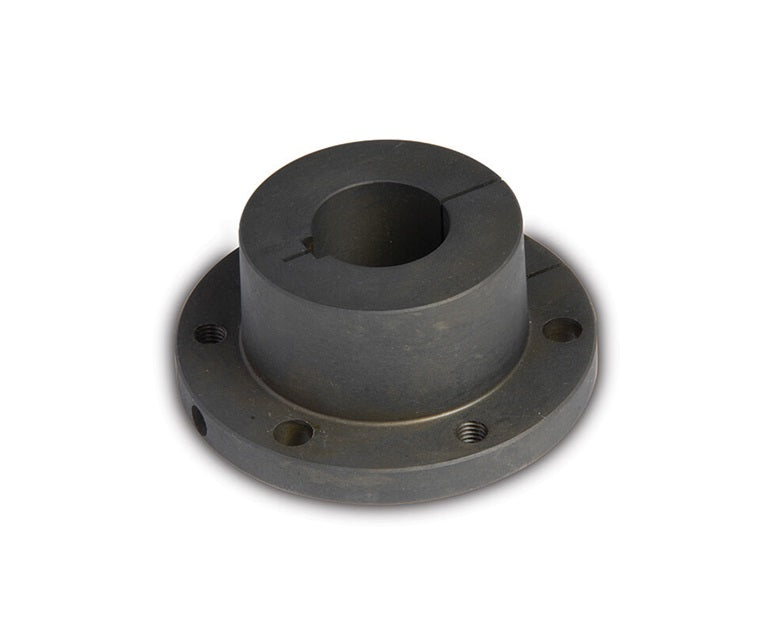

TB Woods E3 Quick Disconnect Bushing - 3.0000 in Bore - 6.0000 in Flg OD - 00940

Product Description

The TB Woods E3 Quick Disconnect Bushing is designed for simplicity and efficiency in mechanical power transmission. This bushing has a bore diameter of three inches and a flange outer diameter of six inches, making it suitable for various applications. It is made from ductile iron, ensuring durability under stress.

• Six-hole drilling for easy installation and removal.
• Precise taper provides proper wedging action.
• Versatile design permits mounting of different sheaves on the same shaft.

Product Highlights

Easy to install and remove with multiple applications in mechanical systems.

Product Information

Standard Information

• UPC: Not available
• Country Of Origin: Not specified

Technical Specifications

• Bore Diameter: 3.0000 in
• Flange Outside Diameter: 6.0000 in
• Length Through Bore: 2.6250 in
• Barrel Length: 1-7/8 in
• Barrel Diameter: 3.834 in
• Flange Thickness: 0.7500 in
• Screw Length: 2-3/4 in
• Bolt Circle Diameter: 5 in
• Number Of Bolt Holes: 3
