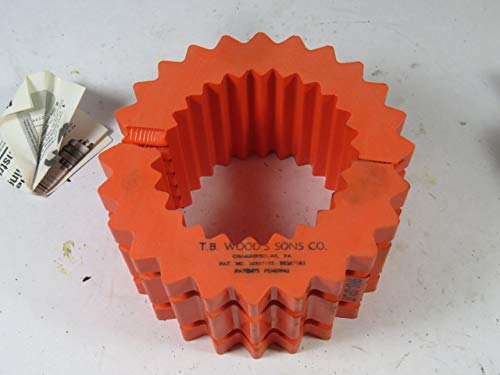

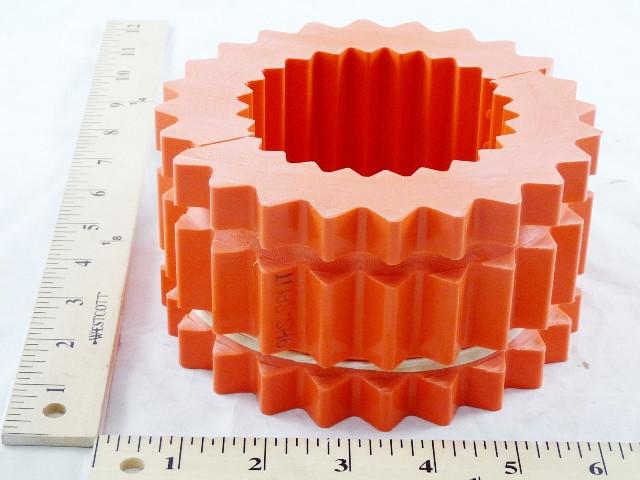

TB Woods 9HS Hytrel Split Insert W/Ring Sleeve Coupling Insert

Product Description

The TB Woods 9HS Hytrel Split Insert with Ring is a premier solution for enhancing the functionality of industrial machinery. This robust insert is crafted using Hytrel, known for its durability and performance in demanding environments.

• Enhanced torque transmission up to 7200 inch-lb
• Operational across a wide temperature range from -65 to 250 degrees Fahrenheit
• Designed for various applications including motors, pumps, and conveyors

Product Highlights

This sleeve coupling insert excels in reducing mechanical stress in motor connections, making it indispensable in industrial settings.

Product Information

Standard Information

• Width: 3 inches
• Outside Diameter: 6 inches

Technical Specifications

• Maximum RPM: 3750
• Operating Temperature Range: -65 to 250 degrees Fahrenheit
• Rated Torque: 7200 inch-lb
• Application: Ideal for motors, pumps, compressors, blowers, mixers, and conveyors
• Material: Hytrel
• Insert Design: Two-Piece Split
• Manufacturer: TB Woods
