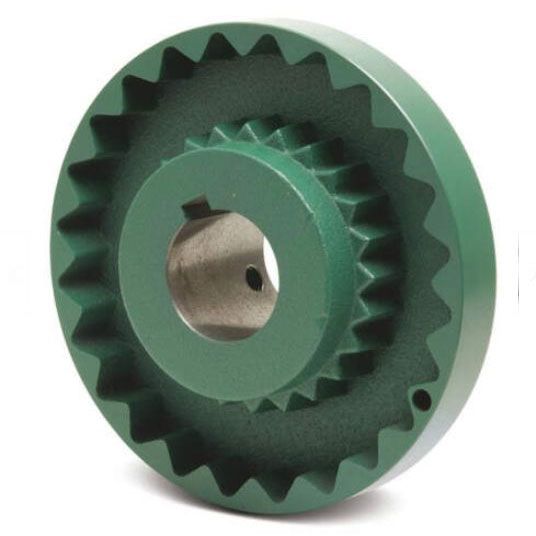

TB Woods 8S218 Sleeve Coupling Flange - Spacer Flange, Size 8, 2.1250 in Bore

Product Description

The TB Woods 8S218 is a sleeve coupling flange designed to connect and provide a secure fit for various mechanical applications. This coupling flange has a bore diameter of two point one two five inches and is made of durable cast iron material. It is ideal for use in high-strength installations.

• Durable cast iron construction
• Spacer flange type for easy alignment
• Maximum RPM rating of four thousand five hundred

Product Highlights

This product features easy installation and removal, making it suitable for maintenance tasks in mechanical setups.

Product Information

Standard Information

• Brand: TB Woods
• MPN: 8S218

Technical Specifications

• Bore Diameter: 2.1250 in
• Flange Diameter: 5.4500 in
• Length Through Bore: 2-3/32 in
• Hub Material: Cast Iron
• Maximum RPM: 4500
• Hub Type: Spacer Flange
• Hub End Outside Diameter: 4-7/16 in
• Horsepower at 100 RPM: 1.8 (EPDM & Neoprene) hp, 7.2 (Hytrel) hp
