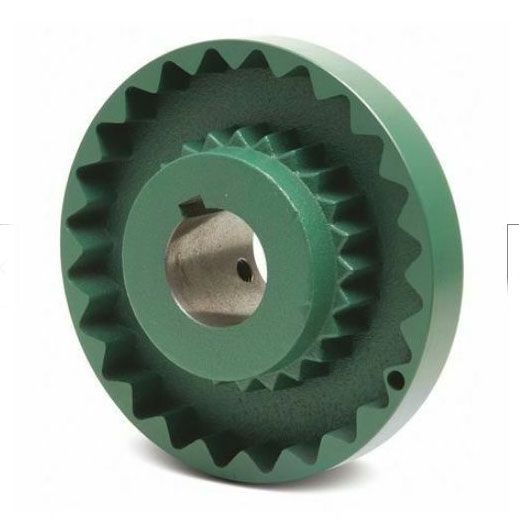

TB Woods 8S178 Sleeve Coupling Flange - Spacer Flange, Size 8, 1.8750 in Bore, Cast Iron Material

Product Description

The TB Woods 8S178 Sleeve Coupling Flange offers a robust solution for mechanical power transmission systems. This product features a bore size of one point eight seven five inches and is crafted from high-strength cast iron, ensuring durability under demanding conditions.

• Type S flanges offer a slip fit on standard shafts.
• Available in a variety of stock bore sizes.
• Easy to install and remove, optimizing operational efficiency.

Product Highlights

Designed for effective power transmission, the 8S178 flange supports high RPM applications while providing reliability in various industrial settings.

Product Information

Standard Information

• Brand: TB Woods
• MPN: 8S178

Technical Specifications

• Bore Diameter: 1.8750 in
• Flange Diameter: 5.4500 in
• Length Through Bore: 2-3/32 in
• Max RPM: 4500 rpm
• Horsepower @ 100 RPM: 1.8 (EPDM & Neoprene) hp, 7.2 (Hytrel) hp
• Hub Material: Cast Iron
• Coupling Overall Length: 3-1/4 in
• Hub End Outside Diameter: 4-7/16 in
