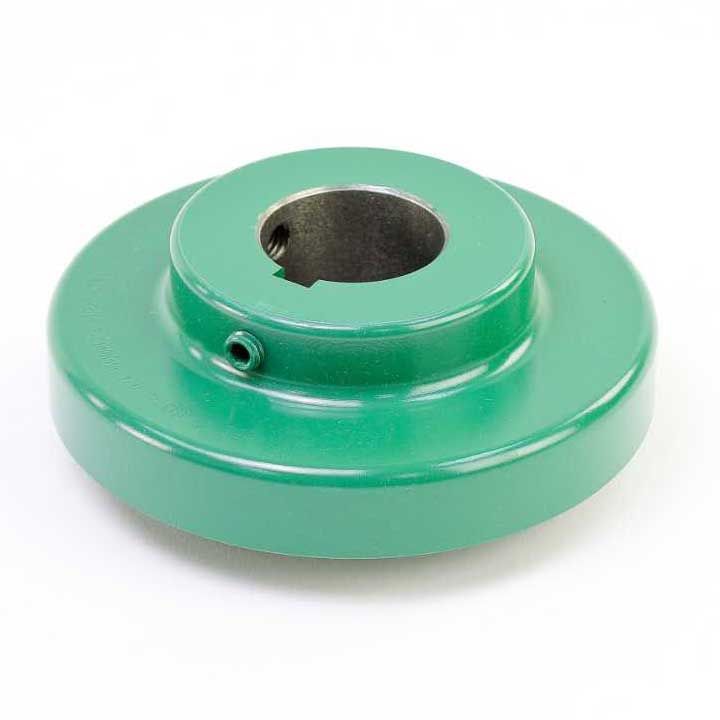

TB Woods 8S158 Sleeve Coupling Flange - Spacer Flange, Size 8, 1.6250 in Bore, Cast Iron Material

Product Description

The TB Woods 8S158 is a sleeve coupling flange made from cast iron. This part features a bore size of one point six two five inches and is designed for use in various mechanical applications, particularly in power transmission systems.

• Manufactured from high-strength cast iron
• Bore diameter of one point six two five inches
• Spacer flange type for easy installation

Product Highlights

This flange is suitable for slip fit on standard shafts. It simplifies setup and connection within shaft coupling systems.

Product Information

Standard Information

• Brand: TB Woods
• MPN: 8S158

Technical Specifications

• Bore Diameter: 1.6250 inches
• Flange Diameter: 5.4500 inches
• Length Through Bore: 2-3/32 inches
• Hub Material: Cast Iron
• Max RPM: 4500 RPM
• Horsepower @ 100 RPM: 1.8 (EPDM & Neoprene) HP, 7.2 (Hytrel) HP
• Overall Length: 3-1/4 inches
• Weight: 4.40 pounds
• Compliance: California Prop 65 compliant
