Product Description

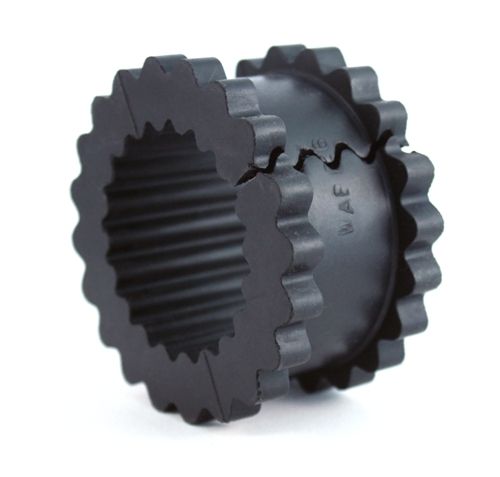

TB Woods 8JS Sleeve Coupling Insert is designed for power transmission applications. Made from EPDM rubber, this insert provides a reliable connection in various systems. Its maximum rated torque is 1,475 inch-pounds, making it suitable for demanding conditions.
- Maximum speed of 4,500 RPM
- Suitable for blowers, compressors, and pumps
- Operating temperature range from -30 degrees to 275 degrees Fahrenheit
Product Highlights
The 8JS Sleeve Coupling Insert is ideal for use with Bell & Gossett pumps.
Product Information
Standard Information
Technical Specifications
-
Maximum RPM: 4,500
-
Rated Torque: 1,475 inch-pounds
-
Outside Diameter: 5.06 inches
-
Width: 2.5 inches
-
Insert Material: EPDM Rubber
-
Operating Temperature: -30 to 275 degrees Fahrenheit
-
HP Rating @ 100 RPM: 2.34 hp
-
Application: Blowers, Compressors, Conveyors, Mixers, Motors, Pumps
