TB Woods 8J Woods 8JE One-Piece Rubber Sleeve

Product Description

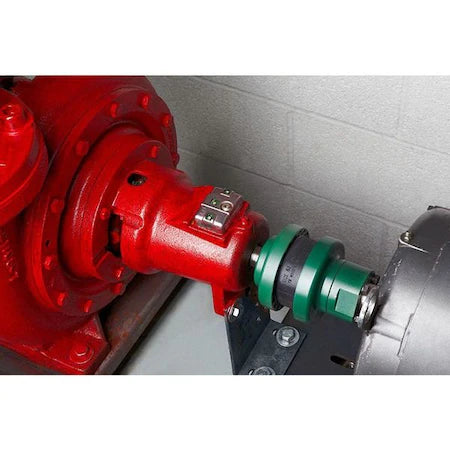

The TB Woods 8J One-Piece Rubber Sleeve Coupling Insert, also known as the model 8JE, is a high-quality component designed for robust and reliable performance in various mechanical systems. Manufactured by TB Woods, this rubber sleeve is an essential part for 8J series couplings, commonly used in pumps and other machinery.

• Compatible with multiple flange types for flexible shaft diameters matching.
• Supports both clockwise and counter-clockwise installations.
• Engineered for high torque and speed applications up to 4,500 RPM.

Product Highlights

This coupling insert is crafted from EPDM rubber, recognized for its durability and resistance to varying temperatures, ranging from -30 to 275 degrees Fahrenheit. It's designed to accommodate angular misalignment up to 1 degree and parallel misalignment up to 0.02 inches, ensuring efficient operation and longevity.

Product Information

Standard Information

• Brand: TB Woods
• Model: 8JE
• MPN: 8J

Technical Specifications

• Material: EPDM Rubber
• Maximum Torque: 1,475 in-lb
• Maximum Speed: 4,500 RPM
• Operating Temperature Range: -30 to 275 degrees Fahrenheit
• Outside Diameter: 5.06 inches
• Insert Width: 2.5 inches
