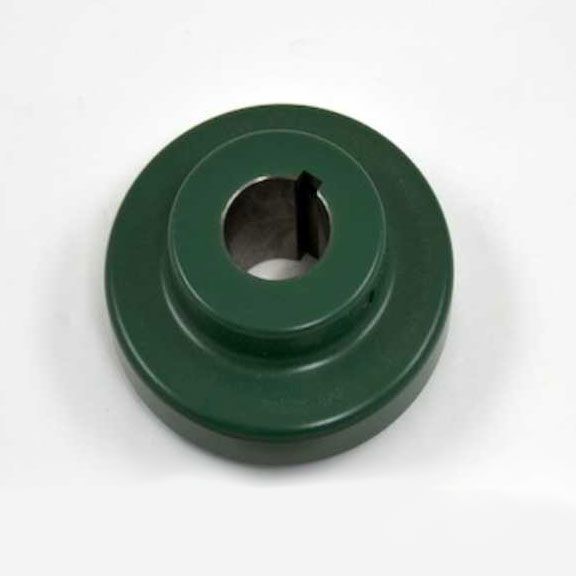

TB Woods 7S138 Sleeve Coupling Flange - Spacer Flange - 1.3750 in Bore - Cast Iron Material

Product Description

TB Woods 7S138 Sleeve Coupling Flange offers a durable solution for power transmission applications. This spacer flange is made from high-strength cast iron, ensuring longevity and reliability in demanding environments. With a bore size of one point three seven five inches, it fits standard shafts easily.

• High-strength cast iron construction
• Bored-to-size for easy installation
• Typical maximum rotation speed of five thousand two hundred fifty RPM

Product Highlights

The TB Woods 7S138 is designed for quick installation and removal, making it suitable for various mechanical applications.

Product Information

Standard Information

• Brand: TB Woods
• MPN: 7S138

Technical Specifications

• Bore Diameter: 1.3750 in
• Flange Diameter: 4.6250 in
• Length Through Bore: 1-27/32 in
• Overall Length: 2-13/16 in
• Max RPM: 5250 rpm
• Hub Type: Spacer Flange
• Horsepower @ 100 RPM: 1.2 (EPDM & Neoprene) hp, 4.6 (Hytrel) hp
• Hub End Outside Diameter: 3-15/16 in
