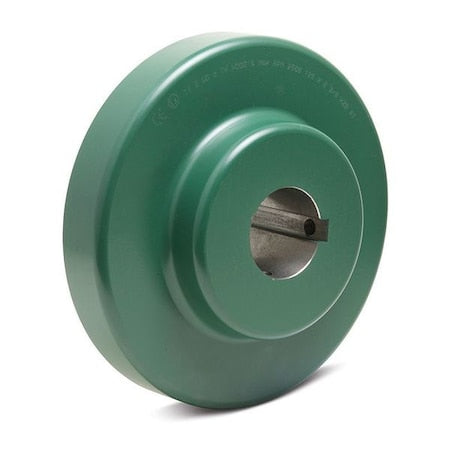

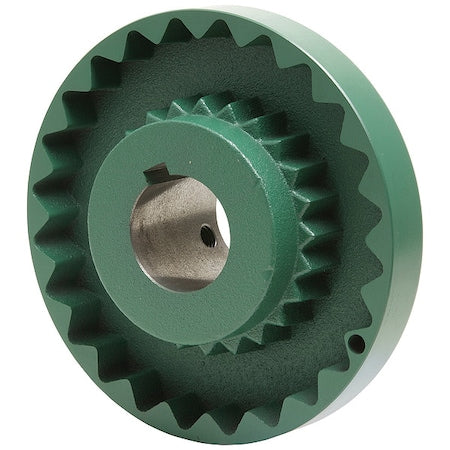

TB Woods 7S-15/8 Sure-Flex Sleeve Coupling Flange 1-5/8 Bore

Product Description

The TB Woods 7S-15/8 Sure-Flex Sleeve Coupling Flange is vital for power transmission needs. This coupling flange, with a 1-5/8 bore, is designed to provide a reliable and secure connection for various industrial applications.

• Heavy-duty steel construction
• Suitable for compressors, conveyors, motors, and pumps
• Ensures effective transmission of torque

Product Highlights

The 7S-15/8 flange offers a maximum speed of 5,250 RPM, with a maximum torque capacity of 940 in-lb. Its robust design makes it ideal for demanding applications where high strength and rigidity are required.

Product Information

Standard Information

• Brand: TB Woods
• MPN: 7S-15/8

Technical Specifications

• Item Number: 7S-1 5/8
• Hub Type: Flange Hub
• Maximum Speed: 5,250 RPM
• Torque: 940 in-lb
• Bore Diameter: 1-5/8 inches
• Outside Diameter: 4-5/8 inches
• Hub Diameter: 2-13/16 inches
• Material: Cast Iron
