Tb Woods 6J1316 Sure-Flex Type J BTS Flange 6 Size

Product Description

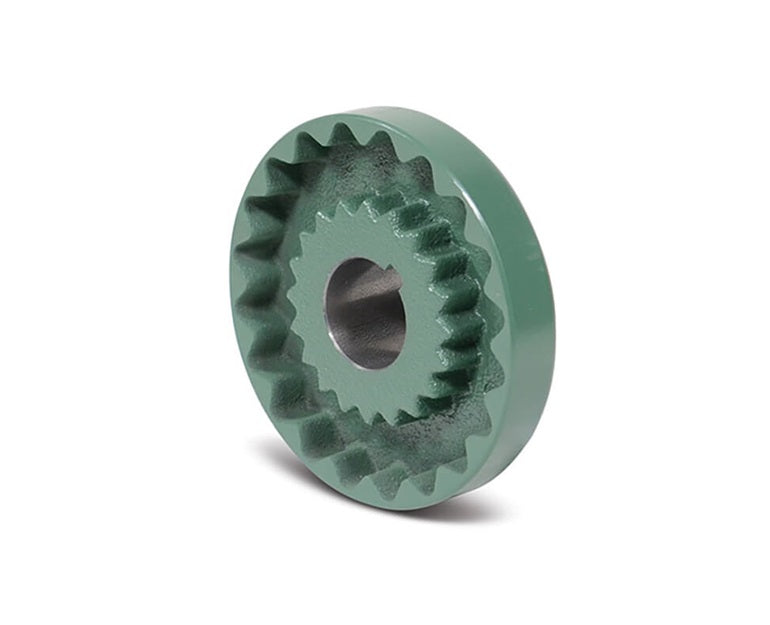

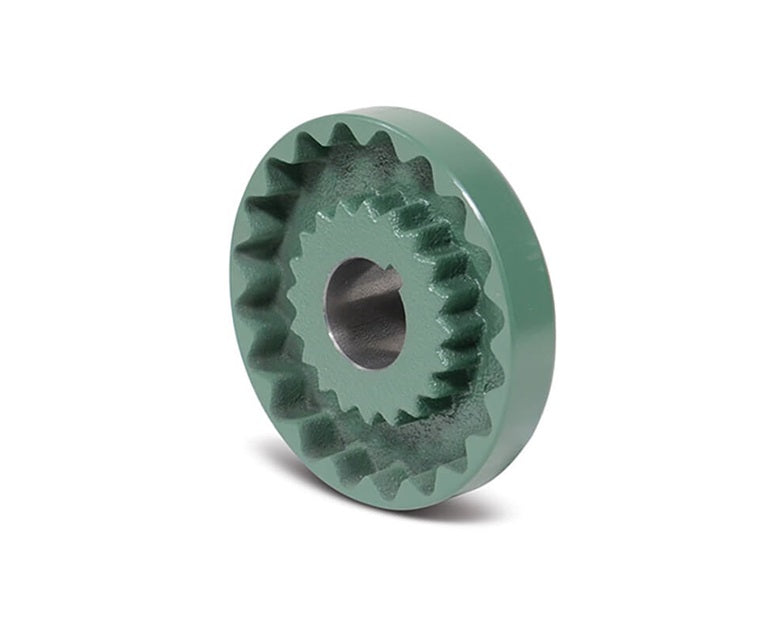

The TB WOODS 6J1316 is a Sure-Flex Type J BTS Flange constructed from high-strength cast iron. This flange is designed for coupling applications, featuring a 6 Size and a 1.1875 inch bore diameter. It is capable of operating at a maximum speed of 6000 RPM and has a torque rating of 1028 N-m. The design accommodates a maximum angular gap misalignment of 0.07 inches and a maximum parallel misalignment of 0.015 inches, ensuring reliable performance in demanding environments.

• Sure-Flex Type J BTS Flange made from high-strength cast iron.
• Features a 1.1875 inch bore diameter with a finished keyway.
• Supports a maximum speed of 6000 RPM and a torque of 1028 N-m.

Product Highlights

High-strength cast iron flange with 1.1875 inch bore, 6000 RPM max speed, and 1028 N-m torque rating.

Product Information

Standard Information

• Brand: TB WOODS
• Manufacturer Part Number: TB-6J1316

Technical Specifications

• Product Type: Sure-Flex Type J BTS Flange
• Bore Diameter: 1.1875 inch
• Bore Tolerance: +0.0005" to +0.0015"
• Bore Type: Finished With Keyway
• Coupling Size: 6
• Flange Length: 1 1/4"
• Horsepower at 100 Speed: 93/100 hp
• Hub Type: Shaft Hub
• Hub Diameter: 2 1/2"
• Hub Flange Type Code: J
• Hub Length: 0.562"
• Keyseat Size: 1/4" x 1/8"
• Length Through Bore: 1.312"
• Material: High Strength Cast Iron
• Max Angular Gap Misalignment: 0.07"
• Max Angular Misalignment: 1°
• Max Parallel Misalignment: 0.015"
• Max Speed: 6000 RPM
• Outside Diameter: 4"
• Set Screw Distance: 1/4"
• Set Screw Length: 1/2"
• Set Screw Location: One Over Ks And @ 90°
• Set Screw Thread Size: 5/16"-18
• Set Screw Thread Type: Coarse
• Setscrew Torque Requirement: 13 lbs.-in.
• Torque: 1028 N-m
